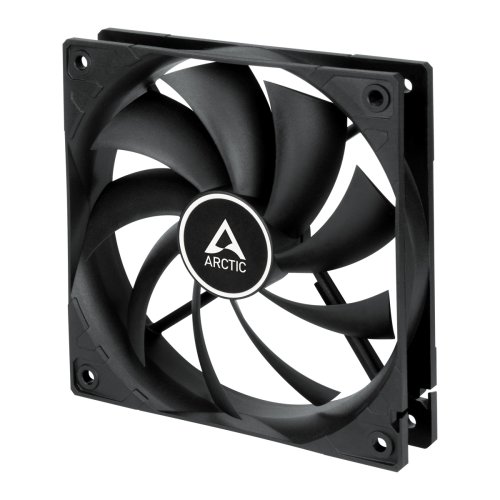

F12 120 mm Standard Case Fan

LONG SERVICE LIFE The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life

INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.

TWO WAY INSTALLATION Blow warm air out of the case

Draw cool air into your case

General data

Performance

Fan Speed: 1350 rpm Airflow: 53 CFM/ 90.1 m3/h Static Pressure: 1.00 mm H2O Noise Level: 0.3 Sone Operating Ambient Temperature: 0 - 40 °C

Fan Fan Frame: Standard Control Type: Fixed Speed Connector: 3-Pin-Connector Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics: Typical Voltage: 12 V DC Starting Voltage: 2.7 V Current/ Voltage: 0.12 A / 12 V Cable Lenght: 400 mm

Size & Weight Lenght: 120 mm Width: 120 mm Height: 25 mm Weight: 107 g

Packaging Width: 123 mm Height: 123 mm Length: 27 mm Weight: 0.13 kg
