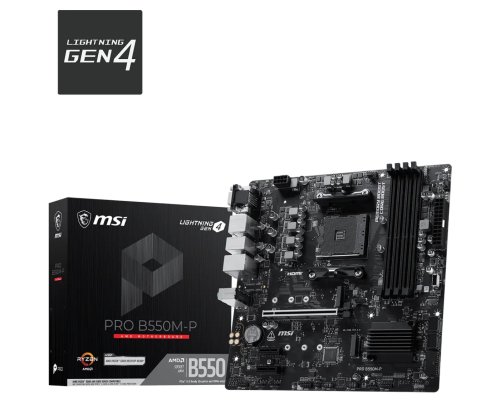

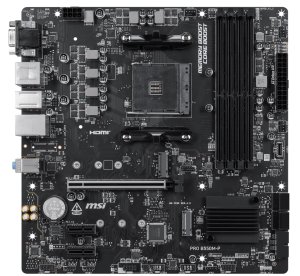

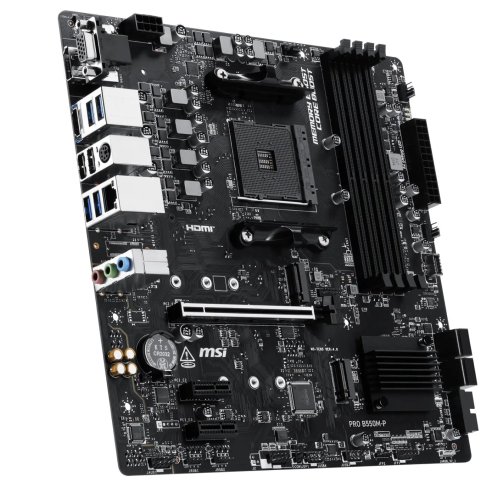

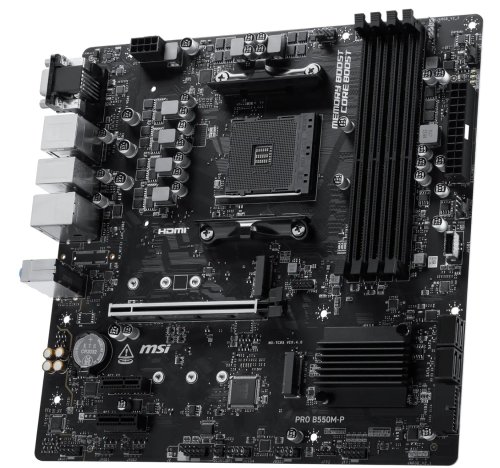

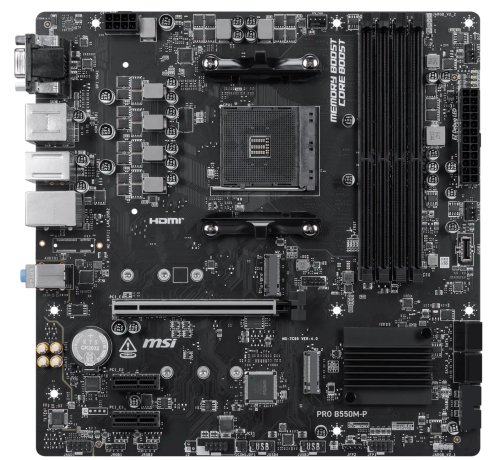

MSI PRO B550M-P

Chipset: AMD B550 Rozměrový formát: mATX 243.84mmx243.84mm Podpora pro procesory: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Patice procesoru: AM4

Paměť:

*4x DDR4, Maximum Memory Capacity 128GB *Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE *Max. overclocking: *1DPC 1R Max speed up to 4400+ MT/s *1DPC 2R Max speed up to 3733+ MT/s *2DPC 1R Max speed up to 3866+ MT/s *2DPC 2R Max speed up to 3466+ MT/s *Supports JEDEC Speed *Supports Dual-Channel mode *Supports non-ECC, un-buffered memory *Supports Memory Overclocking by A-XMP OC mode

Grafické porty:

1x HDMI

*Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Supports DP 1.4, maximum resolution of 4K 60Hz

1x VGA

*Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

Zvuková karta:

*Realtek® ALC897 Codec *7.1-Channel High Definition Audio

Ethernet: Realtek® RTL8111H 1Gbps LAN

Rozšiřující sloty:

1x PCI-E x16 slot

2x PCI-E x1 slot

*PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) *PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) *PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

2x M.2

*M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices *M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

4x SATA 6G

USB: Zadní USB

*2x USB 2.0 *4x USB 5Gbps Type A

Přední USB

*4x USB 2.0 *2x USB 5Gbps Type A (Front) *1x USB 5Gbps Type C

Interní porty:

Napájení

*1× Power Connector (ATX_PWR) *1× Power Connector (CPU_PWR) *1× CPU Fan *2× System Fan

USB

*4× USB 2.0 ports *2× USB 5Gbps Type-A ports *1× USB 5Gbps Type-C port

Ostatní

*2× Front Panel (JFP) *1× Chassis Intrusion (JCI) *1× Front Audio (JAUD) *1× COM Port (JCOM) *2× Addressable V2 RGB LED connectors (JARGB_V2) *2× RGB LED connectors (JRGB) *1× TPM pin header (TPM 2.0)

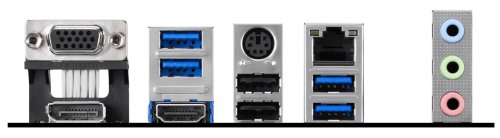

Porty na zadním panelu:

*VGA *USB 5Gbps Type-A *Keyboard / Mouse *LAN Port *Audio connectors *DisplayPort *HDMI™ *USB 2.0 *USB 5Gbps Type-A

OS: Windows 11 64-bit, Windows 10 64-bit
