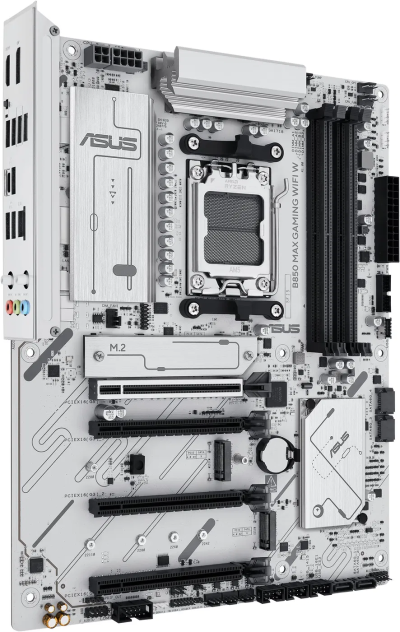

B850 MAX GAMING WIFI W
Základné dosky B850 MAX GAMING WIFI W sú odborne navrhnuté tak, aby naplno využili potenciál procesorov AMD Ryzen™ série 9000.
Základná doska B850 MAX GAMING WIFI W poskytuje používateľom a konštruktérom PC rad optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru. Je navrhnutý tak, aby bol pripravený na počítač s pokročilou AI a ponúkal výkon a konektivitu potrebnú pre náročné aplikácie AI.

Model
B850 MAX GAMING WIFI W

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

  Chipset
  AMD B850 Chipset

  Memory
  4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  AMD B850 Chipset
  1 x PCIe 4.0 x16 slot (support x4 mode)
  2 x PCIe 3.0 x16 slots (support x1 mode)*

• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ** Specifications vary by CPU types.
  *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported

  Storage
  Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
  AMD B850 Chipset
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
  4 x SATA 6Gb/s ports


• Specifications vary by CPU types.
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  Ryzen™ 8000 Series Processors: RAID 0/1
  Ryzen™ 7000 Series Processors: RAID 0/1/10

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth
  "Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth® v5.3**

• WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
  ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

  USB
  Rear USB (Total 8 ports)
  4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C®)
  2 x USB 5Gbps ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 9 ports)
  1 x USB 5Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  3 x USB 2.0 headers support 6 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback

  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

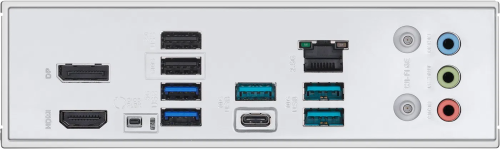

  Back Panel I/O Ports
  1 x USB 10Gbps port (1 x USB Type-C®)
  3 x USB 10Gbps ports (3 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connectors
  1 x 4-pin +12V CPU Power connectors
  Storage Related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  3 x USB 2.0 headers support 6 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable RGB Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin System Panel header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage protection

• SafeSlot

• Stainless-steel back I/O
  ASUS Q-Design

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• Flexible M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• Pre-mounted I/O shield

• SafeSlot
  Aura Sync

• Addressable RGB Gen 2 headers

  Software Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving
  ASUS AI Advisor
  ASUS Driver Hub
  ASUS GlideX
  TurboV Core
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x M.2 rubber packages
  3 x Screw packages for M.2 SSD
  Documentation
  1 x Quick start guide

  Operating System
  Windows® 11, Windows® 10 64-bit

  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
