Chipset: AMD A520

Rozměrový formát: mATX Form Factor (226 mm x 221 mm) Podpora pro procesory: 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Patice procesoru: AM4

Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: *4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 (Dual Channel Memory Architecture) *ECC Memory (ECC mode) support varies by CPU.

Grafické výstupy: (na základě CPU)

Zvuková karta: *Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Síťová karta: *Realtek RTL8111H 1Gb Ethernet

Rozšiřující sloty: *1x PCIe 3.0 x16 (x16 mode) *2x PCIe 3.0 x1

RAID řadič: 0, 1, 10

SATA: *4x SATA 6Gb/s port(s)

M.2: *1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

USB: *zadní USB porty (celkem 6) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *přední USB porty (celkem 6) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A)

Interní porty: *1x CPU Fan connector(s) *1x Chassis Fan connector(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *4x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector

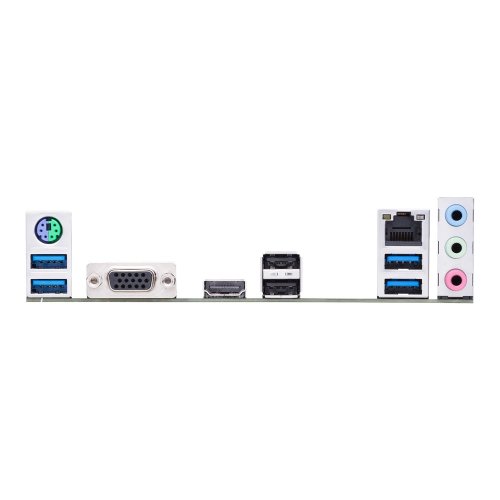

Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *4x USB 3.2 Gen 1 (blue) Type-A *2x USB 2.0 *3x Audio jack(s)

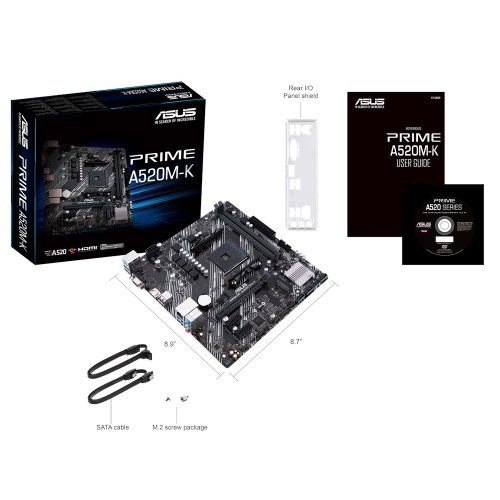

Příslušenství: *uživatelská příručka *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x M.2 SSD screw package(s)

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce: https://www.asus.com/Motherboards/PRIME-A520M-K https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
