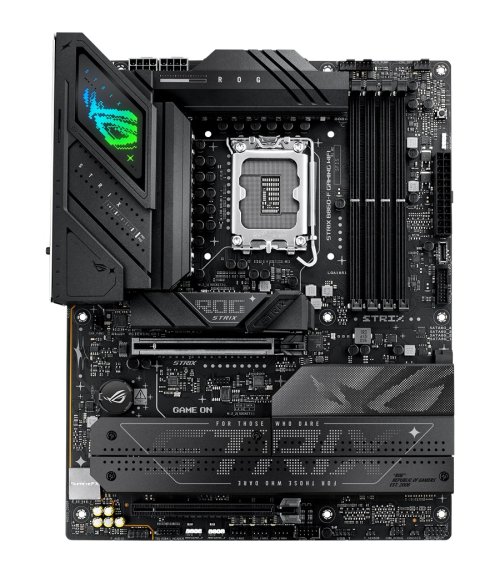

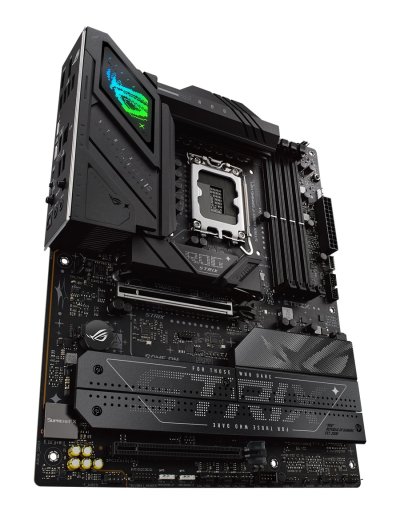

ROG STRIX B860-F GAMING WIFI
S podporou NPU a špičkovými riešeniami AI podporuje ROG STRIX B860-F Gaming WiFi pokročilé AI PC aplikácie.
Vďaka Thunderbolt™ 4, PCIe® 5.0 a osvetleniu Aura Sync ponúka ultrarýchle rýchlosti prenosu dát, výnimočnú konektivitu a všestrannú estetiku, ktorá sa hodí k odvážnym aj jemným štýlom.

ASUS AI ADVISOR
Pomocou technológie AI na pochopenie otázok alebo popisov scenárov v prirodzenom jazyku umožňuje ASUS AI Advisor užívateľom preskúmať funkčnosť a pokročilé funkcie základných dosiek ASUS jednoduchým a priamočiarym spôsobom.

AI NETWORKING II
AI Networking II kombinuje inteligentné technológie na nepretržitú optimalizáciu výkonu siete, poskytovanie dôveryhodného a bezproblémového pripojenia a uvoľnenie plnej rýchlosti WiFi 7*.

NPU BOOST
Integrovaný NPU v procesoroch Intel® Core™ Ultra (séria 2) efektívne urýchľuje pracovné postupy AI – a NPU Boost vám umožní urobiť viac. Táto funkcia BIOS pretaktuje NPU jediným kliknutím, čím sa zvýši výkon až o 24 %.

Asynchrónne hodiny
Pre ďalšiu úroveň frekvenčnej flexibility je ROG Strix B860-A vybavený vstavaným generátorom hodín, ktorý izoluje základné hodiny CPU od pamäte, NPU, D2D a NGU. Posúvajte výkon pamäte, NPU a ďalších na ich absolútnu hranicu pri zachovaní stability domén hodín CPU.
Oddeľte CPU BCLK od ostatných domén pre neobmedzené pretaktovanie.

AEMP III
ASUS Enhanced Memory Profile III (AEMP III) je pokročilá funkcia firmvéru, ktorá používateľom umožňuje dosiahnuť bezkonkurenčný výkon pamäte vďaka špičkovej pamäti CUDIMM.

DIMM FIT
DIMM Fit je exkluzívna funkcia BIOS od spoločnosti ASUS, ktorá presne analyzuje jednotlivé pamäťové moduly s cieľom optimalizovať výkon a určiť potenciálne problémy.

DDR5 DOMINATION
Vylepšené smerovanie signálu môže posunúť súpravy pre nadšencov ďaleko za hranicu 9 GT/s na Strix B860.


Špecifikácia:

CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset
  Intel® B860 Chipset

  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*"
  Dual channel memory architecture
  Supports Intel® Extreme Memory Profile (XMP) memory module
  DIMM Fit
  ASUS Enhanced Memory Profile III (AEMP III)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
  1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4.
  *** Supports 8K@60Hz with DSC as specified in HDMI 2.1.
  **** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
  ***** VGA resolution support depends on processors' or graphic cards' resolution.
  ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

  Expansion Slots
  Intel® Core™ Ultra Processors(Series 2)
  1 x PCIe 5.0 x16 slot (supports x16)
  Intel® B860 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)*


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

  Storage
  Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel® Core™ Ultra Processors(Series 2)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  Intel® B860 Chipset
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
  4 x SATA 6Gb/s ports**


• M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled.
  ** Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet
  1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard

  Wireless & Bluetooth®
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***

  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

  USB
  Rear USB (Total 9 ports)
  1 x Thunderbolt™ 4 port (1 x USB Type-C®)
  1 x USB 20Gbps port (1 x USB Type-C®)
  1 x USB 10Gbps ports (1 x Type-A)
  6 x USB 5Gbps ports (6 x Type-A)
  Front USB (Total 6 ports)
  1 x USB 10Gbps (1 x USB Type-C®)
  1 x USB 5Gbps header support 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A

  Audio
  "ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*


• Impedance sense for front and rear headphone outputs

• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

• Supports up to 32-Bit/384 kHz playback on front panel"
  Audio Features

• SupremeFX Shielding Technology

• Savitech SV3H712 AMP

• Rear optical S/PDIF out port

• Premium audio capacitors

• Audio cover


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

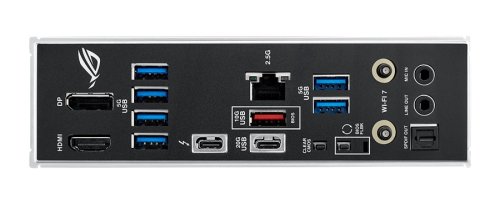

  Back Panel I/O Ports
  1 x Thunderbolt™ 4 (1 x USB Type-C®)
  1 x USB 20Gbps port (1 x USB Type-C®)
  1 x USB 10Gbps port (1 x Type-A)
  6 x USB 5Gbps ports (6 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel® 2.5Gb Ethernet port
  2 x audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header support 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen2 headers
  1 x Chassis Intrusion header
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ (USB4®) header

  Special Features
  Extreme Engine Digi+


• 5K Black metallic capacitors
  ASUS Q-Design

• M.2 Q-Latch

• M.2 Q-Release

• PCIe Slot Q-Release Slim (with PCIe SafeSlot)

• Q-Antenna

• Q-Dashboard

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink backplate

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• Clear CMOS button

• CPU Socket lever protector

• ProCool

• Pre-mounted I/O shield

• SafeSlot

• SafeDIMM
  Aura Sync

• Addressable Gen2 headers

  Software Features
  ROG Exclusive Software

• ROG CPU-Z

• Dolby Atmos
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 4

• GameFirst

• Power Saving
  ASUS Driver Hub
  AIDA64 Extreme (60 days free trial)
  HWiNFO
  ASUS GlideX
  TurboV Core
  Adobe Creative Cloud (Days Free Trial)
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  NPU Boost
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS 256 Mb Flash ROM, UEFI AMI BIOS
  Manageability WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  1 x Cable ties package
  1 x M.2 Q-Latch package
  1 x M.2 Q-Slide package
  1 x ROG key chain
  1 x ROG Strix stickers
  4 x M.2 rubbers
  Documentation
  1 x Quick start guide

  Operating System Windows® 11 (22H2 & later)

  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
