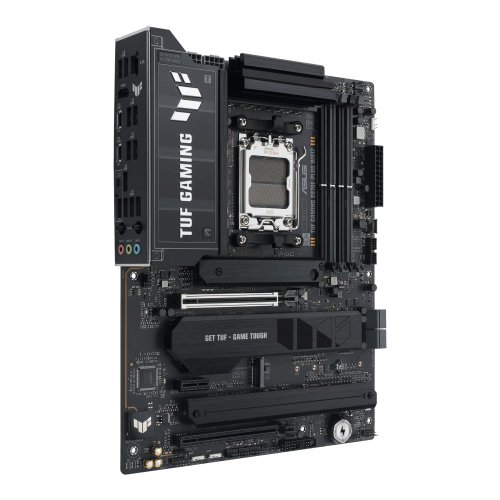

TUF GAMING X870E-PLUS WIFI7
ASUS TUF GAMING X870E-PLUS WIFI7 využíva všetky základné prvky najnovších procesorov AMD Ryzen™ a kombinuje ich s hernými funkciami a overenou odolnosťou.
Táto základná doska, navrhnutá s komponentmi vojenskej triedy, vylepšeným riešením napájania a komplexným chladiacim systémom, prekonáva očakávania a ponúka stabilný výkon pre maratónske hranie.
Základné dosky TUF GAMING tiež prechádzajú prísnymi testami odolnosti, aby sa zabezpečilo, že zvládnu podmienky, v ktorých by iné zlyhali. Táto platforma poskytuje výkon a konektivitu, ktoré vyžadujú pokročilé aplikácie pre PC s umelou inteligenciou.

AI Advisor
ASUS AI Advisor je technický expert spoločnosti ASUS, ktorý je vždy k dispozícii, aby odpovedal na vaše otázky. Majitelia kompatibilných základných dosiek ASUS môžu s touto technológiou založenou na umelej inteligencii komunikovať pomocou prirodzeného jazyka a dozvedieť sa viac o svojom hardvéri. Pre začiatočníkov v oblasti domácich majstrov môže poskytnúť ľahko zrozumiteľné vysvetlenia optimalizačných funkcií jedným kliknutím, ako je AI Overclocking a AI Cooling II, a pre skúsených veteránov v oblasti skladania počítačov môže ponúknuť poradenstvo a pokyny k najnovším funkciám, ktoré spoločnosť ASUS ponúka.

Pretaktovanie pomocou umelej inteligencie
Maximalizovaný výkon CPU a predpovede ideálnych nastavení CPU a chladenia, ktoré posúvajú limity vášho systému.

Chladenie AI II
Optimalizované teploty a znížená hlučnosť prostredníctvom dynamického nastavenia rýchlosti ventilátorov na základe teploty procesora.

AI Networking II
Optimalizovaný výkon siete, ktorý pomáha zabezpečiť bezproblémové pripojenie a maximálne rýchlosti WiFi 7.



Model
TUF GAMING X870E-PLUS WIFI7

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

  Chipset
  AMD X870E Chipset

  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*"
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  1 x HDMI™ port**
  2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
  *** VGA resolution support depends on processors' or graphic cards' resolution.

  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot**
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  AMD X870E Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 3.0 x1 Slot

• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ** Specifications vary by CPU types.


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

  Storage
  Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot is not supported
  AMD X870 Chipset
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  Ryzen™ 8000 Series Processors: RAID 0/1
  Ryzen™ 7000 Series Processors: RAID 0/1/10


• Specifications vary by CPU types.
  ** M.2_2 slot shares bandwidth with PCIex16(G5)_1 When M.2_2 runs at PCIe x4 mode, PCIex16(G5)_1 will run x8.

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard

  Wireless & Bluetooth
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
  Bluetooth® v5.4***

• Wi-Fi features may vary depending on the operating system.
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

  USB
  Rear USB (Total 13 ports)
  2 x USB4® (40Gbps) ports (2 x USB Type-C®)*
  3 x USB 10Gbps ports (3 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)**
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A
  ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.

  Audio
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC


• Impedance sense for front and rear headphone outputs

• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

• Supports up to 32-Bit/192 kHz playback*"
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers

• Audio cover

• Unique de-pop circuit


• Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

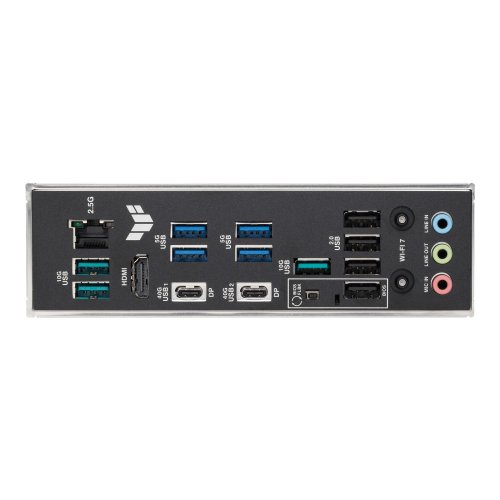

  Back Panel I/O Ports
  2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  3 x USB 10Gbps ports (3 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front System Panel header
  1 x Thermal Sensor header

  Special Features
  ASUS TUF PROTECTION


• DIGI+ VRM (- Digital power design with SPS)

• ESD Guards

• TUF LANGuard

• Overvoltage protection

• SafeSlot

• Stainless-steel back I/O
  ASUS Q-Design

• M.2 Q-Latch

• Q-Release Slim (with PCIe SafeSlot)

• Q-Antenna

• Q-Dashboard

• Q-DIMM

• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsinks

• VRM heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• ProCool

• Pre-mounted I/O shield

• SafeDIMM
  Aura Sync

• Addressable Gen 2 headers
  Front Panel USB 20Gbps with PD Fast Charge Support

• Support: up to 30W fast charging and USB Wattage Watcher

• Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A

• Compatible with PD3.0

  Software Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 4 (with AI Cooling II)
  ASUS AI Advisor
  ASUS DriverHub
  ASUS GlideX
  USB Wattage Watcher
  TurboV Core
  TUF GAMING CPU-Z
  DTS Audio Processing
  Norton 360 for Gamers (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  AI Overclocking Guide
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey

  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  2 x M.2 rubber packages
  1 x Screw package for M.2 SSD
  1 x TUF GAMING sticker

  Documentation
  1 x Quick start guide

  Operating System
  Windows 11

  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
