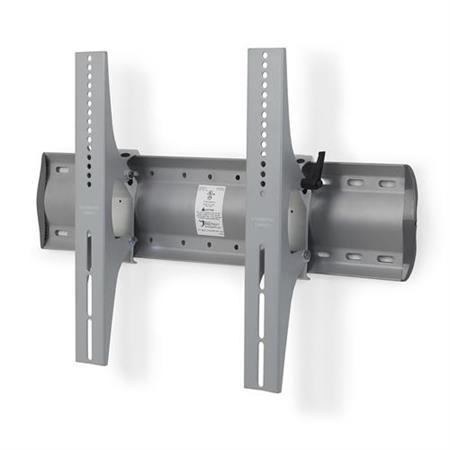

ERGOTRON TILTING WALLMOUNT.MEDIUM DISPLAY.TM.CLEAR ANODIZED pro 32"-120" obrazovky

The TM is the perfect accessory for large displays or TVs weighing up to 175 lbs (79 kg). Attaching your valuable flat panel investment to a wall can be nerve-racking. So we took our engineering know-how and created an extremely stable TV wall mount solution that’s easy to install. With its integrated CF™ motion technology, anyone can effortlessly tilt the screen to the perfect angle.

Part Number: 61-143-003

Product Benefits
Tilt your screen with just a light touch or use the integrated tilt lock-down feature to hold it in position
Simple three-step installation
Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display
View in comfort: Cut glare while improving sight lines
Fits most ? 32" displays up to 175 lbs (79 kg)
Includes fasteners for mounting to wood studs or concrete walls

Part Number: 61-143-003
Description: TM Tilting Wall Mount (silver)
Includes wall plate, two display brackets with tilt-lock levers, hardware fastener kit

• Mounting holes must fit within spacing range below: horizontal = 100 mm (min.) to 600 mm (max.); vertical = 100 mm (min.) to 450 mm (max.)
  For displays with horizontal hole pattern of 601–800 mm, order TM, XL version (pt. # 61-142-003)
  Premium Construction: Composed of extruded aluminum and steel
  Mounting Options: Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" centered studs) or concrete walls
  If mounting to wall using 24" centered studs, order TM, XL version (pt. # 61-142-003)
  Profile off the wall = 3.5" (89 mm)
  UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
  Shipping Dimensions: 34.6"W x 12.9"H x 4.3"D (88 x 33 x 11 cm)
  Shipping Weight: 14 lbs (6.3 kg)
