<B>Chipset: </B> Intel Z790 Express Chipset

<B>Rozměrový formát: </B> ATX Form Factor; (30.5cm x 24.4cm) <B>Podpora pro procesory: </B> 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors <B>Patice procesoru: </B> LGA 1700

<B>Pozice na paměti: </B> 4 x DDR DIMM sockets, Dual channel memory architecture <B>Podpora pro paměti: </B> DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules <B>Max.velikost operační paměti: </B> 128 GB (32 GB single DIMM capacity) <B>Podpora pro paměti typu: </B> ECC, non-ECC, XMP

<B>Grafické výstupy: </B> (Intel HD Graphics) *1 x HDMI 2.0 port, maximální rozlišení 4096x2160@60 Hz *1 x DisplayPort 1.2, maximální rozlišení 4096x2304@60

<B>Zvuková karta: </B>Realtek Audio CODEC *2/4/5.1/7.1-channel *Podpora S/PDIF Out

<B>Síťová karta: </B> *Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *Intel Wi-Fi 6E AX211 a, b, g, n, ac, ax *Bluetooth 5.3

<B>Rozšiřující sloty: </B> *1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) *2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

<B>RAID řadič: </B> RAID 0, RAID 1, RAID 5, and RAID 10

<B>SATA: </B> 6 x SATA 6Gb/s connectors <B>M.2: </B> 4 x M.2 Socket 3 connectors

<B>USB: </B> *<B>Interní: </B> *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *<B>Externí: </B> *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 2 Type-A ports (red) *3 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports

<B>Interní porty: </B> *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x CPU fan header *1 x water cooling CPU fan header *3 x system fan headers *1 x system fan/water cooling pump header *2 x addressable LED strip headers *2 x RGB LED strip headers *4 x M.2 Socket 3 connectors *6 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *2 x Thunderbolt add-in card connectors *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x reset button *1 x Q-Flash Plus button *1 x Clear CMOS button *1 x reset jumper *1 x Clear CMOS jumper

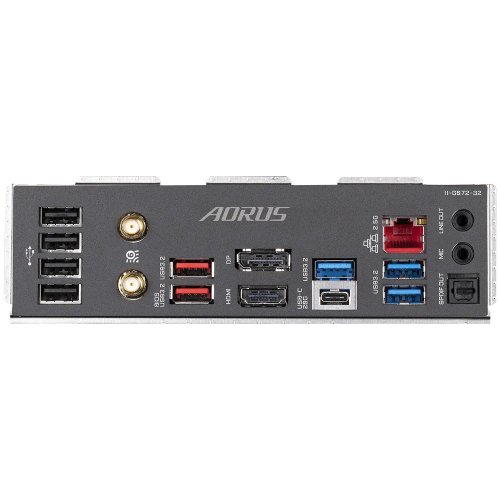

<B>Externí porty: </B> *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 2 Type-A ports (red) *3 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *2 x SMA antenna connectors (2T2R) *1 x HDMI 2.0 port *1 x DisplayPort *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks

<B>BIOS: </B> AMI UEFI BIOS, 1 x 256 Mbit flash

<B>Stránka výrobce: </B> http://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-rev-10#kf
