RB951Ui-2HnD

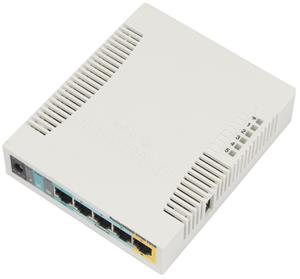

OVERVIEW The RB951Ui-2HnD is a wireless SOHO AP with a new generation Atheros CPU and more processing power. It has five Ethernet ports, one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n wireless AP with antennas built in.

It has a 600MHz CPU,128MB of RAM and PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Package contains RouterBOARD 951Ui-2HnD in a plastic case and power adapter.

SPECIFICATIONS Product code • RB951Ui-2HnD

CPU speed • 600MHz

CPU cores • 1

RAM • 128

LAN ports • 5

Gigabit • No

MiniPCI • 0

Integrated Wireless • Yes

Wireless standards • 802.11b/g/n

USB • 1

Power Jack • Yes

802.3af support • No

PoE • 8-30V DC on Ether1

Voltage Monitor • No

PCB temperature monitor • No

CPU temperature monitor • No

Dimensions • 113x138x29mm

Operating Systém • RouterOS

Temperature range • -20C +50C

RouterOS License • L4

Antenna gain • 2.5dBi

Current Monitor • No

TX power • 30dBm

Max Power consumption • Up to 7W

SFP ports • 0
