<B>Chipset: </B> AMD A520

<B>Rozměrový formát: </B> Micro-ATX Form Factor (236 mm x 200 mm) <B>Podpora pro procesory: </B> AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors <B>Patice procesoru: </B> AM4

<B>Pozice na paměti: </B> 2x DDR4 DIMM <B>Podpora pro paměti: </B> *1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC *2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE <B>Max.velikost operační paměti: </B> 64 GB <B>Podpora pro paměti typu: </B> DDR4 *Dual channel memory architecture *Supports non-ECC UDIMM memory *Supports ECC UDIMM memory (non-ECC mode) *Supports un-buffered memory

<B>Grafické výstupy: </B> *Integrated Graphics Processor (na základě procesoru)

<B>Zvuková karta: </B> *Realtek® ALC892/ALC897 Codec

<B>Síťová karta: </B> *1x Realtek® RTL8111H Gigabit LAN controller

<B>Rozšiřující sloty: </B> *1x PCIe 3.0 x1 slot *1x PCIe x16 slot

<B>RAID řadič: </B> 0, 1, 10

<B>SATA: </B> *4x SATA 6Gb/s

<B>M.2: </B> *1x M.2 slots

<B>USB: </B> *<B>zadní USB porty ( celkem 6 )</B> *2x USB 2.0 ports *4x USB 3.2 Gen 1 5Gbps Type-A ports *<B>přední USB porty ( celkem 6 )</B> *2x USB 3.2 Gen 1 5Gbps ports *4x USB 2.0 ports

<B>Interní porty: </B> *1x 24-pin ATX main power connector *1x 4-pin ATX 12V power connector *4x SATA 6Gb/s connectors *1x M.2 slots (M-Key) *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Chassis Intrusion connector *1x TPM module connector *1x Clear CMOS jumper

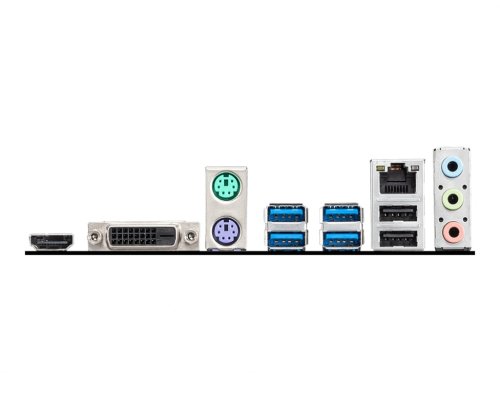

<B>Externí porty: </B> *LAN port *HDMI *DVI-D *Keyboard / Mouse *4x USB 3.2 Gen 1 5Gbps Type-A *2x USB 2.0 Ports *Audio Connectors

<B>Stránka výrobce: </B> https://www.msi.com/Motherboard/A520M-A-PRO
