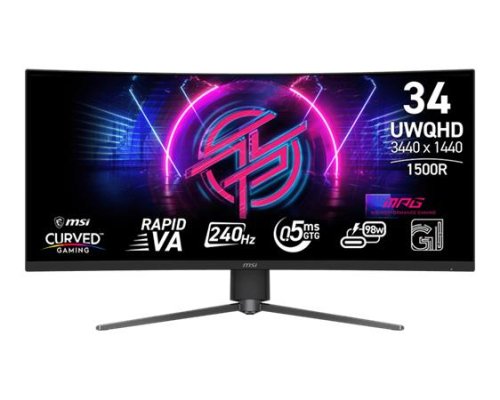

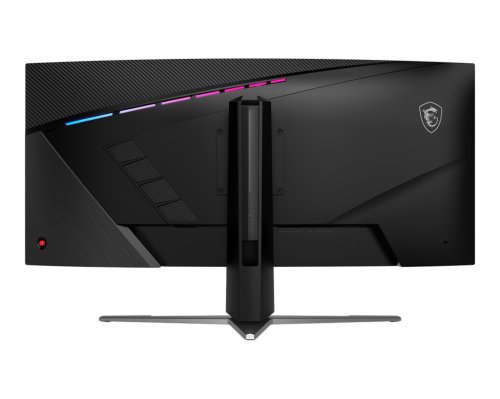

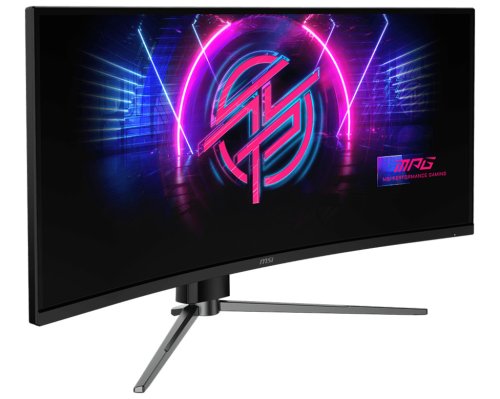

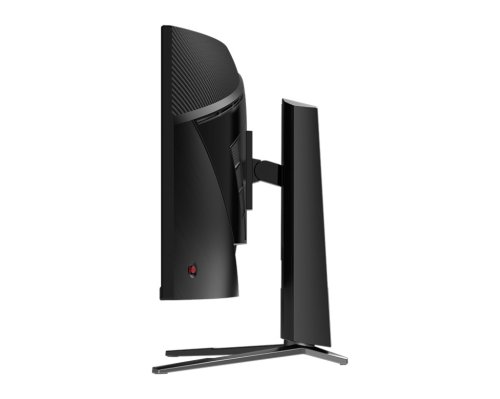

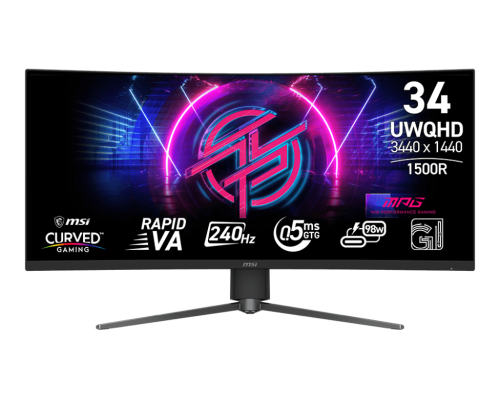

MSI Gaming monitor MPG 346CQRF X24, 34" Rapid VA zakřivený/3440x1440 (UWQHD)/240Hz/0,5ms/2xHDMI/DP/USB-A,B,C/Výšk.nastav

MKT Spec MPG 346CQRF X24
Website Name MPG 346CQRF X24
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 34" (86.36 cm)
Active Display Area (mm) 797.22(H) x 333.72(V)
Curvature Curve 1500R
Panel Type Rapid VA
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.23175(H)x0.23175(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~240Hz
HDR (High dynamic range) DisplayHDR 400
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 400
Contrast Ratio 4000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 71.52~357.6 KHz(H) / 48~240 Hz(V)
Refresh Rate 240HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 0.5ms
Response Time (Tr + Tf) 4.422ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 90%/83%
NTSC (CIE1931 area percentage/overlap) 85%/80%
sRGB (CIE1976 area percentage/overlap) 110%/92%
sRGB (CIE1931 area percentage/overlap) 120%/95%
Adobe RGB (CIE1976 area percentage/overlap) 90%/85%
Adobe RGB (CIE1931 area percentage/overlap) 85%/80%
DCI-P3 (CIE1976 area percentage/overlap) 88%/85%
DCI-P3 (CIE1931 area percentage/overlap) 88%/85%
Rec.709 (CIE1976 area percentage/overlap) 110%/92%
Rec.709 (CIE1931 area percentage/overlap) 120%/95%
Rec.2020 (CIE1976 area percentage/overlap) 63%/63%
Rec.2020 (CIE1931 area percentage/overlap) 63%/63%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 3440 x 1440 (Up to 240Hz)
Note_HDMI 3440 x 1440 (Up to 240Hz)
Note_DVI N/A
VESA DisplayHDR VESA DisplayHDR 400
VESA ClearMR NA
Delta E NA
I/O Ports
HDMI 2
HDMI version 2.1 (FRL 12G)
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 31
Annual Energy Consumption (KWh) 45
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output YES
PD Output Power 98W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 100 mm
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method Screw locking
Stand Type 3-way HAS (Tilt + Lift + Swivel)
Stand with Integrated Mini PC Mount NA
KVM Version KVM 1.0
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display Support
AI Gaming Support
MSI OLED Care NA
Scaler FW Update Update by Gaming Intelligence (USB + DP)
Carton
Carton Item (SG14) SG14-M1S256A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 16
Q'ty/20cy (by air) pcs 160
Q'ty/40cy (by air) pcs 336
Dimension (L)(by air) mm 1219
Dimension (W)(by air) mm 1016
Dimension (H)(by air) mm 1294
Net Weight (by air) kg 152
Gross Weight (by air) kg 217
pallet Q'ty (by sea) pcs 28
Q'ty/20cy (by sea) pcs 280
Q'ty/40cy (by sea) pcs 588
Dimension (L)(by sea) mm 1219
Dimension (W)(by sea) mm 1016
Dimension (H)(by sea) mm 2108
Net Weight (by sea) kg 246
Gross Weight (by sea) kg 361
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 808 x 278.33 x 537.93
Product Dimension with Stand (WxDxH) (inch) 31.81 x 10.96 x 21.18
Product Dimension without Stand (WxDxH) (mm) 808 x 111.93 x 363.92
Product Dimension without Stand (WxDxH) (inch) 31.81 x 4.41 x 14.33
Stand Dimension (WxDxH) (mm) 549.9 x 278.33 x 413.3
Stand Dimension (WxDxH) (inch) 21.65 x 10.96 x 16.27
Weight (Net kg) 7.9
Weight (Net lbs) 17.42
Weight Without Stand (kg) 6.2
Weight Without Stand (lbs) 13.67
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 99.5 x 17 x 49.2
Inside Carton Dimension (WxDxH) (inch) 39.17 x 6.69 x 19.37
Outer Carton Dimension (WxDxH) (cm) 101.5 x 19 x 52
Outer Carton Dimension (WxDxH) (inch) 39.96 x 7.48 x 20.47
Weight (Gross kg) 12.
Weight (Gross lbs) 26.46
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 1
HDMI Cable Version 2.1
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 1
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name LCD
Segment Name MPG
Segment Name2 MPG 346CQ X24
Segment Name3 MPG 346CQRF X24
Barcode Info
EAN 4711377342193
