WIRELESS

Standards: *Wi-Fi 6 *IEEE 802.11ax/ac/n/a 5 GHz *IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds: AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range: 4-6+ Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity: High Dual-Band Distribute devices to different bands for optimal performance

2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients

OFDMA Simultaneously communicates with multiple WiFi 6 clients

4 Streams More than enough bandwidth for connected devices

Working Modes: *Router Mode *Access Point Mode

HARDWARE

Processor:1 GHz Dual-Core CPU Button Reset Button Ethernet Ports *3× Gigabit Ports *Per Deco Unit *Supports WAN/LAN auto-sensing Power: 12V ?1.5A

SECURITY

WiFi Encryption: *WPA-Personal *WPA2-Personal *WPA3-Personal Network Security: SPI Firewall Access Control

HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner

Guest Network: 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network

SOFTWARE

Protocols: IPv4 IPv6 Service Kits:HomeShield Parental Controls: HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types: Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service: HomeShield QoS QoS by Device Cloud Service: OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding: Port Forwarding UPnP IPTV: IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP: Address Reservation DHCP Client List Server DDNS: TP-Link Management: Deco App

PHYSICAL

Dimensions (W×D×H): 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm) Package Contents:

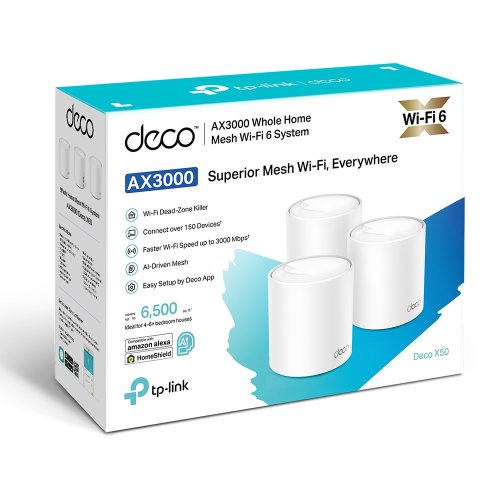

Deco X50 (1-pack) 1 Deco X50 unit 1 RJ45 Ethernet cable 1 Power adapter 1 Quick Installation Guide

Deco X50 (2-pack) 2 Deco X50 units 1 RJ45 Ethernet cable 2 Power adapters 1 Quick Installation Guide

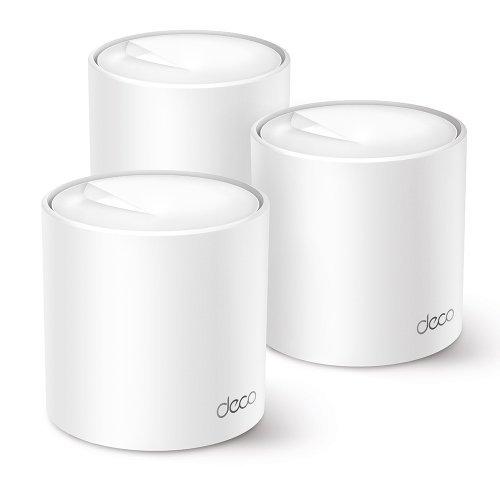

Deco X50 (3-pack) 3 Deco X50 units 1 RJ45 Ethernet cable 3 Power adapters 1 Quick Installation Guide

OTHERS

System Requirements: Android 4.4 or later, iOS 9.0 or later Certifications: CE, FCC, RoHS, RCM Environment Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
