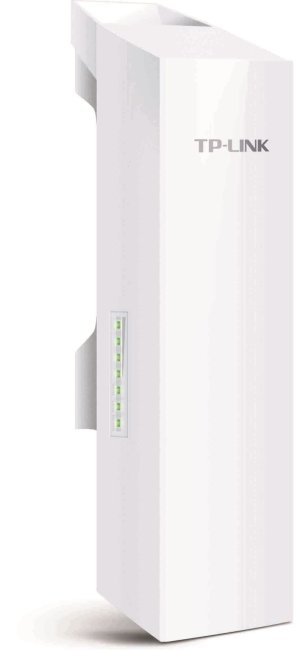

TP-Link CPE210 Outdoor 2,4GHz 300Mbps


TP-Link CPE210 Outdoor 2,4GHz 300Mbps OVERVIEW * Built-in 9dBi 2x2 dual-polarized directional MIMO antenna * Adjustable transmission power from 0 to 27dBm/500mw * System-level optimizations for more …
Vaše cena 1 273,00
Vaše cena bez DPH 1 052,07

Dostupnost Skladem > 5 ks
Odesíláme v úterý

Podrobný popis

TP-Link CPE210 Outdoor 2,4GHz 300Mbps

OVERVIEW

  • Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 5km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System - Pharos Control
  • AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

SPECIFICATIONS HARDWARE FEATURES Processor

  • Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory

  • 64MB DDR2 RAM, 8MB Flash

Interface 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button

Dimensions (W X D X H)

  • 224 x 79 x 60 mm

Antenna Type

  • Built-in 9dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 65° (H-Plane) / 35° (E-Plane)
  • Note: For more details, please refer to datasheet

Protection

  • 15KV ESD Protection
  • 6000V Lightning Protection

Power Consumption

  • 10.5 Watts Max
  • Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Power Supply

  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC

Enclosure

  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification

WIRELESS FEATURES Wireless Standards

  • IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol

  • TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds

  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic)

Frequency

  • 2.4~2.483GHz
  • Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Reception Sensitivity

  • 802.11b:
  • 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
  • 802.11g:
  • 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
  • 802.11n:
  • MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
  • MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
  • MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
  • MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
  • MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm

Transmission Power

  • 27dBm/500mw (Adjustable power by 1dBm)
  • Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES Wireless Configurations

  • Pharos MAXtream TDMA Technology
  • 802.11b/g/n Modes
  • Selectable Channel Width: 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:
  • Beacon Interval/RTS Threshold/Fragmentation

  • Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management

  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server

System Tools

  • Wireless Signal Quality Indicators:
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute

System-level Optimizations

  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

OTHERS Certification

  • CE, FCC, RoHS, IPX5

Package Contents

  • Outdoor Wireless CPE
  • 24V 0,25A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide

System Requirements

  • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
  • Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment

  • Operating Temperature: -30°C~70°C
  • Storage Temperature: -40°C~70°C
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing

POE ADAPTER FEATURES Button

  • Remote Reset Button

Certifications

  • CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Dimensions(W x D x H)

  • 1105733.5mm

Efficiency

  • 80%

Input

  • 100-240VAC, 50/60Hz

Input Current

  • 0.8A Max @ 100VAC

Input Voltage

  • 100VA~240VAC @ 50Hz~60Hz

Interfaces

  • 1 AC Jack with Earth Ground
  • 1 10/100Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100Mbps Shielded Ethernet Port (Data)

Output

  • 24VDC, 1.0A Max
  • +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Output Voltage

  • 24VDC(+4,5pins; -7,8pins)

Power Status LEDs

  • 0~0.8A: Green
  • 0.8A~1.0A: Red
