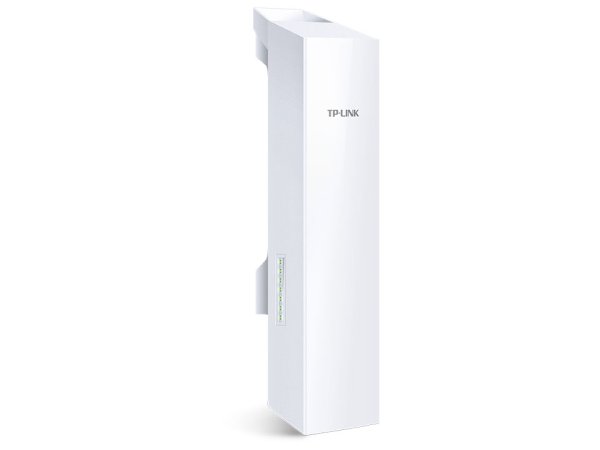

TP-Link CPE220 Outdoor 2,4GHz 300Mbps


Venkovní CPE zařízení 2.4GHz 300Mbit/s 12dBi CPE220 - Vestavěná 12dBi 2x2 směrová MIMO anténa s dvojitou polarizací - Nastavitelný výkon vysílání od 0 do 30dBm/1000mWOptimalizace na úrovni systému pro …
Vaše cena 1 517,00
Vaše cena bez DPH 1 253,72

Dostupnost Skladem > 5 ks
Odesíláme v úterý

Podrobný popis

Venkovní CPE zařízení 2.4GHz 300Mbit/s 12dBi CPE220

  • Vestavěná 12dBi 2x2 směrová MIMO anténa s dvojitou polarizací
  • Nastavitelný výkon vysílání od 0 do 30dBm/1000mWOptimalizace na úrovni systému pro více než 13km dosah bezdrátového přenosu
  • Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP
  • Centralizovaný sytém ovládání - řízení Pharos
  • Provozní režimy AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
  • Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení

HARDWARE FEATURES

Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory 64MB DDR2 RAM, 8MB Flash Interface:

  • 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
  • 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
  • 1 Grounding Terminal
  • 1 Reset Button Power Supply:
  • Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage range: 16-27VDC Dimensions (W X D X H) 11×3.1×2.1 inch (276×79×60 mm) Power Consumption 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Antenna Type:
  • Built-in 12dBi 2x2 Dual-polarized Directional Antenna
  • Beam Width: 60° (H-Plane) / 30° (E-Plane), Note: For more details, please refer to datasheet Protection:
  • 15KV ESD Protection
  • 6KV Lightning Protection Enclosure:
  • Outdoor ASA stabilized plastic material
  • IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds:

  • Up to 300Mbps (40MHz,Dynamic)
  • Up to 144.4Mbps (20MHz,Dynamic)
  • Up to 72.2Mbps (10MHz,Dynamic)
  • Up to 36.1Mbps (5MHz,Dynamic) Frequency 2.4~2.483GHz, Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmission Power 30dBm/1000mw (Adjustable power by 1dBm), Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations:

  • Pharos MAXtream TDMA Technology
  • 802.11b/g/n Modes
  • Selectable Channel Width: 5/10/20/40MHz
  • Automatic Channel Selection
  • Transmission Power Control
  • Dynamic Frequency Selection (DFS)
  • WDS Enable/Disable
  • Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
  • SSID Broadcast Enable/Disable
  • Multi-SSID with VLAN Tagging (AP mode only)
  • Distance/ACK Timeout Setting
  • Wireless MAC Address Filter
  • Wireless Advanced:

Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management:

  • Discovery and Remote Management via Pharos Control application
  • HTTP/HTTPS Web-based management
  • System Log
  • SNMP Agent(v2c)
  • Ping Watch Dog
  • Dynamic DDNS
  • SSH Server System Tools:
  • Wireless Signal Quality Indicators:
  • Signal Strength/Noise/Transmit CCQ/CPU/Memory
  • Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
  • Spectrum Analyzer
  • Speed Test
  • Ping
  • Traceroute System-level Optimizations:
  • Optimized IGMP Snooping/Proxy for multicast applications
  • Hardware watch dog

POE ADAPTER FEATURES

Interfaces:

  • 1 AC Jack with Earth Ground
  • 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
  • 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data) Efficiency >80% Button Remote Reset Button Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Power Status LEDs:
  • 0~0.8A: Green
  • 0.8A~1.0A: Red Output 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Input Voltage 100VA~240VAC @ 50Hz~60Hz Dimensions(W x D x H) 110×57×33.5mm Input Current 0.8A Max @ 100VAC Input 100-240VAC, 50/60Hz Output Voltage 24VDC(+4,5pins; -7,8pins)

OTHERS

Certification CE, FCC, RoHS, IPX5 Package Contents:

  • Outdoor Wireless CPE
  • 24V 1A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Environment:
  • Operating Temperature: -30 C - 70 C
  • Storage Temperature: -40 C - 70 C
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing
