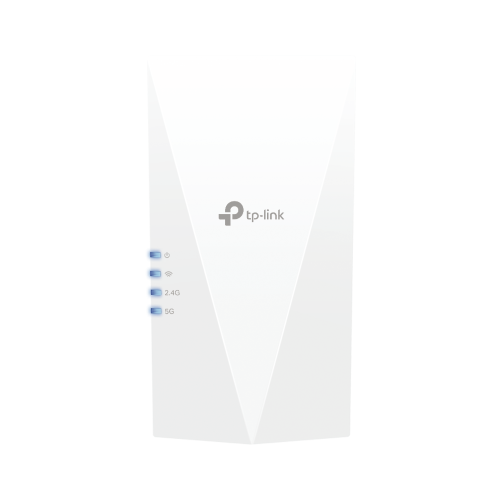

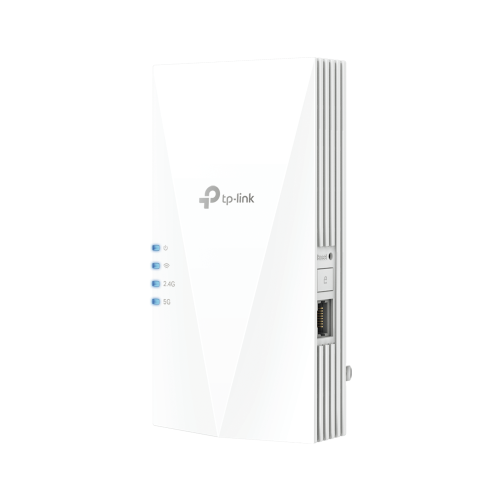

RE500X

HARDWARE

Ports: 1 Gigabit Ethernet Port Button: WPS Button, Reset Button Power Consumption: 10W Dimensions ( W x D x H ): 3.1×1.4×5.9 in. (78×36×149 mm) Antenna: 2 Internal Antennas

WIRELESS

Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz Frequency: 2.4GHz and 5GHz Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz Reception Sensitivity: 5GHz: *11a 6Mbps: -93dBm, *11a 54Mbps: -75dBm *11ac HT20 MCS0: -92dBm, *11ac HT20 MCS8: -70dBm *11ac HT40 MCS0: -90dBm, *11ac HT40 MCS9: -66dBm *11ac HT80 MCS0: -87dBm, *11ac HT80 MCS9: -62dBm

2.4GHz: *11g 54Mbps: -77dBm, *11n HT20 MCS7: -75dBm *11n HT40 MCS7: -72dBm Transmit Power: CE: 2.4GHz ?20dBm, 5GHz ?30dBm Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2 encryptions

Package Contents: Wi-Fi Range Extender RE500X, Quick Installation Guide System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Certifications: FCC, RoHS
