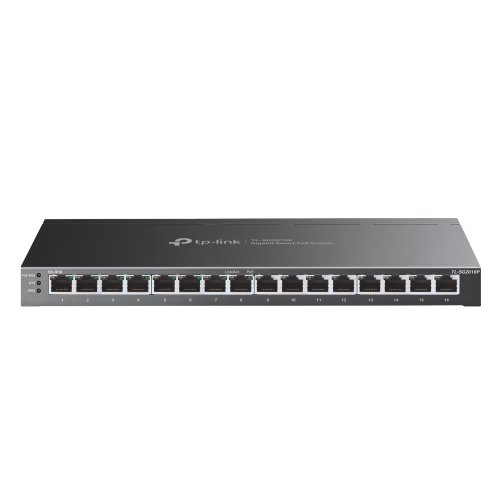

Model: TL-SG2016P

HARDWARE FEATURES Standards and Protocols: *IEEE 802.3i *IEEE 802.3ab *IEEE 802.3ad *IEEE 802.3af *IEEE 802.3at *IEEE 802.3x *IEEE 802.1d *IEEE 802.1s *IEEE 802.1w *IEEE 802.1q *IEEE 802.1p *IEEE 802.1x Interface: *16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+) *Auto-Negotiation/Auto MDI/MDIX Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) Fan Quantity *Fanless Power Supply
• External Power Adapter (Output: 53.5 VDC/ 2.43 A) PoE Ports (RJ45)
• Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 120 W* Dimensions ( W x D x H ) *11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm) Max Power Consumption *146.5 W (110 V/60 Hz) (with 120 W PD connected) Max Heat Dissipation *499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)

PERFORMANCE Bandwidth/Backplane: *16 Gbps MAC Address Table: *8k Packet Buffer Memory: *4.1 Mbit Jumbo Frame: *9 KB

SOFTWARE FEATURES Quality of Service:

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode

• SP (Strict Priority)
• WRR (Weighted Round Robin)

• Queue Weight Config
• Bandwidth Control

• Port/Flow-based Rating Limit

• Smoother Performance
• Storm Control

• Multiple Control Modes(kbps/ratio)
• Broadcast/Multicast/Unknown-Unicast Control L2 and L2+ Features:

• DHCP Relay

• DHCP VLAN Relay

• DHCP L2 Relay
• Link Aggregation

• Static link aggregation
• 802.3ad LACP
• Up to 8 aggregation groups and up to 8 ports per group

• Spanning Tree Protocol

• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• STP Security: TC Protect, BPDU Filter/Protect, Root Protect

• Loopback Detection
• Flow Control

• 802.3x Flow Control

• Mirroring

• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Flow-Based
• Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED L2 Multicast:
• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping

• IGMP v1/v2/v3 Snooping
• Fast Leave
• IGMP Snooping Querier
• Static Group Config

• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping

• MLD v1/v2 Snooping
• Fast Leave
• MLD Snooping Querier
• Static Group Config

• Limited IP Multicast (256 profiles and 16 entries per profile) IPv6 Support:
• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications

• DHCPv6 Client
• Ping6
• Tracert6
• Telnet (v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP VLAN:

• VLAN Group

• Max. 4K VLAN Groups

• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN Access Control List:
• Support up to 230 entries
• Time-Range

• Time Slice
• Week Time-Range
• Absolute Time-Range
• Holiday

• Time-based ACL
• MAC ACL

• Source MAC
• Destination MAC
• VLAN ID
• User Priority
• Ether Type

• IP ACL

• Source IP
• Destination IP
• IP Protocol
• TCP Flag
• TCP/UDP Source Port
• TCP/UDP Destination Port
• DSCP/IP TOS

• IPv6 ACL
• Combined ACL
• Rule Operation

• Permit/Deny

• Policy Action

• Mirror
• Rate Limit
• Redirect
• QoS Remark

• ACL Rules Binding

• Port Binding
• VLAN Binding

• Actions for flows

• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark Security:

• AAA
• 802.1X

• Port-based authentication
• MAC (Host) based authentication
• Authentication Method includes PAP/EAP-MD5
• MAB
• Guest VLAN
• Support Radius authentication and accountability

• IP/IPv6-MAC Binding

• 512 Binding Entries
• DHCP Snooping
• DHCPv6 Snooping
• ARP Inspection
• ND Detection

• IP Source Guard

• 253 Entries
• Source IP+Source MAC

• IPv6 Source Guard

• 183 Entries
• Source IPv6 Address+Source MAC

• DoS Defend
• Static/Dynamic/Permanent Port Security

• Up to 64 MAC addresses per port

• Broadcast/Multicast/Unicast Storm Control

• kbps/ratio control mode

• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control Advanced Features:
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule MIBs:
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT Omada App: Yes, through

• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller Cloud Access: Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller Management Features:
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

OTHERS Certification: CE, FCC, RoHS Package Contents:

• TL-SG2016P
• Power Adapter
• Installation Guide
• Rubber Feet System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Environment:
• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
