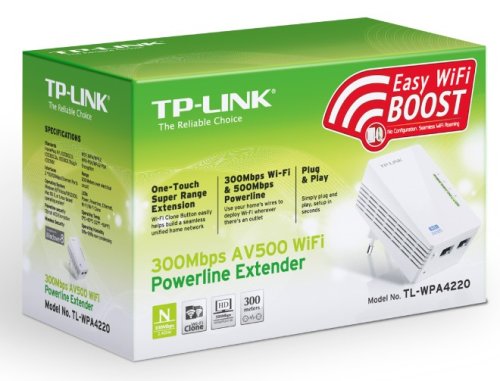

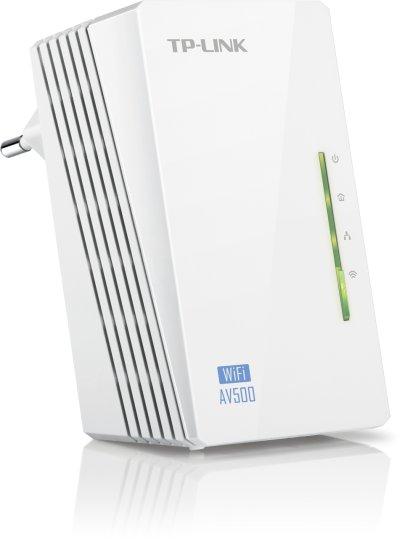

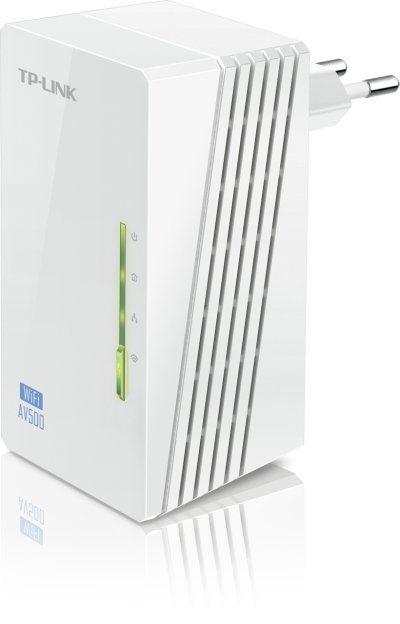

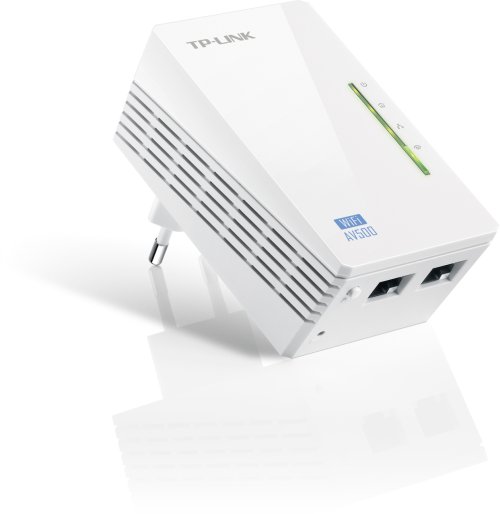

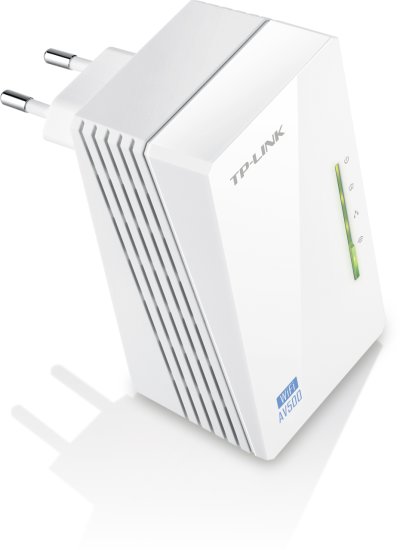

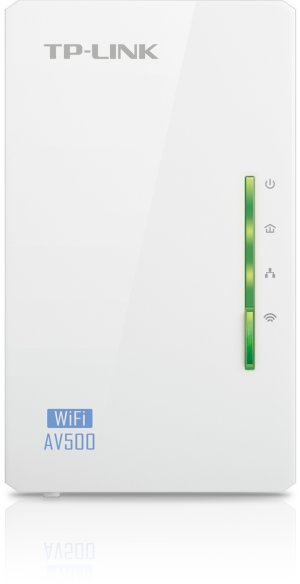

TP-Link TL-WPA4220 N300 Powerline Extender

OVERVIEW

• One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
• HomePlug AV standard providing up to 500Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
• Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

SPECIFICATIONS HARDWARE FEATURES

Standards and Protocols

• HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n

Interface

• 2*10/100Mbps Ethernet Port

Plug Type

• EU, UK, US, AR

Button

• Pair, Reset, Wi-Fi/Wi-Fi Clone

LED Indicator

• PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone

Dimensions ( W x D x H )

• 94×54×40mm

Power Consumption

• Maximum: 5.308W (220V/50Hz)
• Typical: 5.086W (220V/50Hz)
• Standby: 4.170W (220V/50Hz)

Range

• 300 Meters over electrical circuit

SOFTWARE FEATURES

Modulation Technology

• OFDM (PLC)

Encryption

• Powerline Security:
• 128-bit AES
• Wireless Security:
• WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

OTHERS

Certification

• CE, FCC, RoHS

Package Contents

• Powerline Ethernet Adapter TL-WPA4220
• 6.5 ft. (2 m) Ethernet cable (RJ45)
• Resource CD
• Quick Installation Guide

System Requirements

• Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux

Environment

• Operating Temperature: 0°C~40°C
• Storage Temperature: -40°C~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
