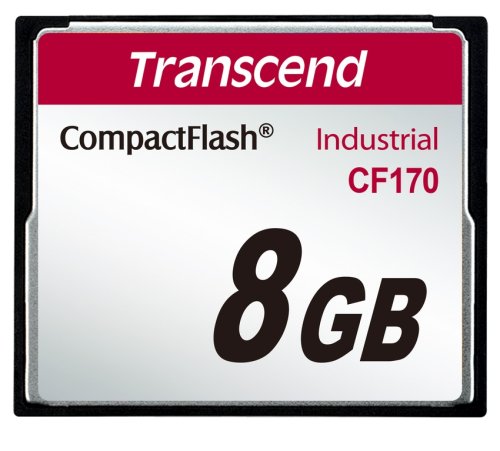

Transcend 8GB INDUSTRIAL CF CARD CF170 paměťová karta (MLC)

CF170 CF Card

Boasting high-speed data transfer rates and extra large storage space, Transcend's industrial CF170 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications with demanding performance and capacity requirements. Thanks to their use of StaticDataRefresh and EarlyRetirement technology, the CF170 CF cards are able to correct data errors, maintain data integrity, and extend the lifespan of their flash memory cells.

Features:
RoHS compliant products
CompactFlash Specification Version 6.0 Complaint
Support S.M.A.R.T (Self-defined)
Support Security Command
Support Static Data Refresh, Early Retirement to extend product life
Operation Modes: PC Card Memory, PC Card IO, True IDE
True IDE Mode supports: UDMA0-5, MDMA0-2, PIO0-6
True IDE mode: Fixed Disk (Standard)
PC Card Mode supports up to Ultra DMA Mode 5
PC Card Mode: Removable Disk (Standard)
Built-in BCH ECC (Error Correction Code) functionality and global wear-leveling algorithm ensures highly reliable of data transfer
Power Shield function, the product can protect itself when abnormal power occurs or irregular temperature usage.

Specifications
Interface(connector): Compact Flash, 50P
Form Factor: Compact Flash Card
Flash Type: MLC
Capacity(GB): 8GB
Max. R/W Performance(MB/s)(Vary by density):

• Read: 90MB/s

• Write: 60MB/s
  Op. Voltage(V): 3.3V±5% or 5V±10%
  Power Consumption(W): 0.76W
  Op. Temp.(C): - 25C~85C
  Storage Temp.(C): - 40C~85C
  Humidity(%): 0%~95%
  Shock(G): 1500G, 0.5ms, 3 axis
  Vibration(Hz/G): 20G (Peak-to-Peak), 20Hz to 2000Hz(Frequency)
  Dimensions(mm): 42.8mm × 36.4mm × 3.3mm
  MTBF(hours): 1,000,000 hours
