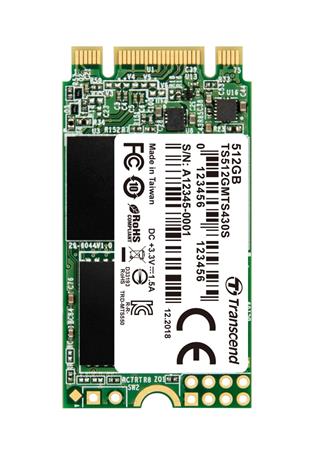

TRANSCEND MTS430S 512GB SSD disk M.2, 2242 SATA III 6Gb/s (3D TLC), 560MB/s R, 500MB/s W

Transcend's ultracompact M.2 SSD 430S, adopting the SATA III 6Gb/s interface and DDR3 DRAM cache, is well-suited to address the high-performance needs and strict size limitations of small form factor devices. By using only high-quality NAND flash and enhanced firmware algorithms, Transcend's M.2 SSD 430S delivers peerless reliability.

Key Features:
Space-saving M.2 SATA form factor (42mm) for ultra-compact computing devices
3D NAND flash memory
DDR3 DRAM cache
SATA III 6Gb/s interface and SLC caching technology for exceptional transfer speeds
Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity
Supports Device Sleep Mode (DevSleep) to prolong notebook battery life by intelligently shutting down SATA interface when not in use
Supports S.M.A.R.T., TRIM and NCQ commands

Specifications:
Dimensions (Max.): 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.15")
Weight (Max.): 6 g (0.21 oz)
Bus Interface: SATA III 6Gb/s
Flash Type: 3D NAND flash
Capacity: 512 GB
Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
Operating Voltage: 3.3V±5%
Performance:

• Read Speed (Max.): 560 MB/s

• Write Speed (Max.): 500 MB/s
  4K Random Read/Write: 80,000/85,000 IOPS
  Terabytes Written (Max.): 280 TBW
  Mean Time Between Failures (MTBF): 1,000,000 hour(s)
  Drive Writes Per Day (DWPD): 0.3 (5 yrs)
  Technology:

• TRIM & NCQ Command

• S.M.A.R.T.

• DDR3 DRAM Cache

• Advanced Garbage Collection

• RAID Engine

• LDPC Coding


  Note
  Speed may vary due to host hardware, software, usage, and storage capacity.

  Certificate : CE/FCC/BSMI
  Warranty: Five-year Limited Warranty

  Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

  System Requirement:
  Operating System
  Microsoft Windows 7
  Microsoft Windows 8
  Microsoft Windows 10
  Linux Kernel 2.6.31 or later

  Note
  Please make sure that your computer has a M.2 slot.
