| Vaše cena | 4 419,80 Kč |
| Vaše cena bez DPH | 3 652,70 Kč |
| Dostupnost | Skladem > 5 ks |
| Odesíláme zítra | |
Hardware
Indoor and Outdoor Use Yes
Ambient Operating Temperature -30 to 60° C
( -22 to 140° F)
Ambient Operating Humidity 5 to 90% noncondensing

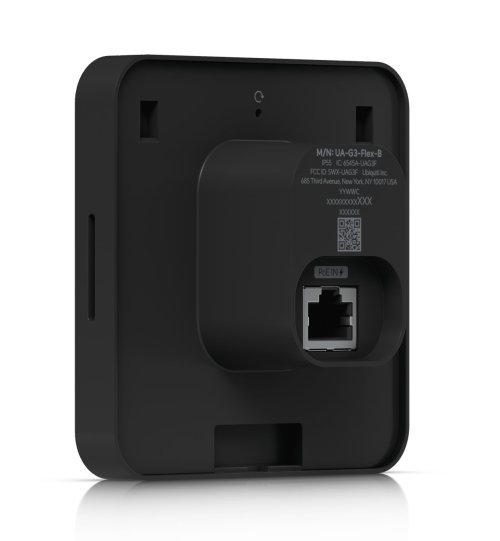

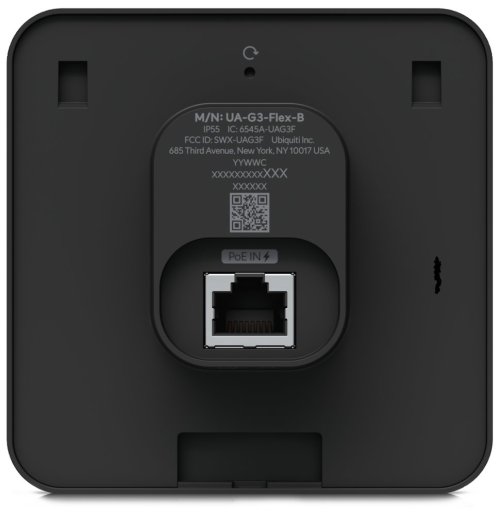

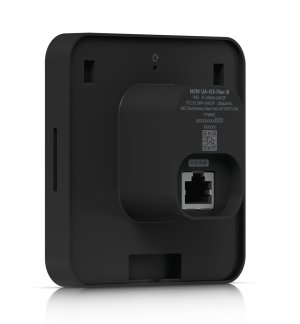

Networking Interface (1) 10/100 MbE RJ45 port
Connectivity BLE 4.1
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 5W
Supported Voltage Range 44—57V DC
ESD/EMP Protection Air: ±15kV, contact: ±8kV

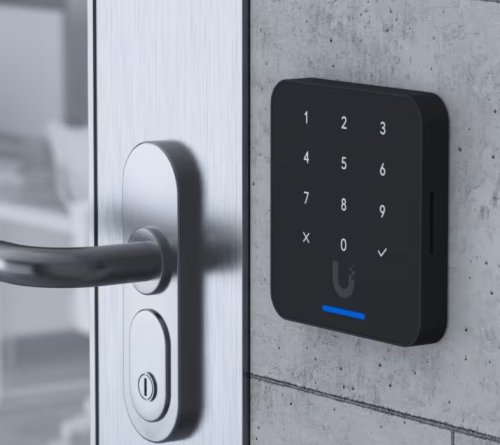

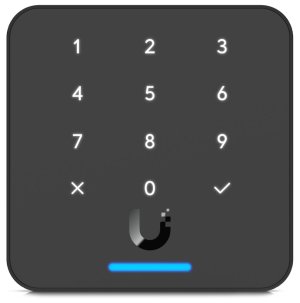

Sensors (12) Capacitive buttons
Speaker Yes
LEDs
R/G/B/W Learn More
Button
(1) Factory-reset
NFC Frequency
13.56 MHz
NFC Read Range
< 30 mm (1.18'')
NFC Technology
ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements
Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 Statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications

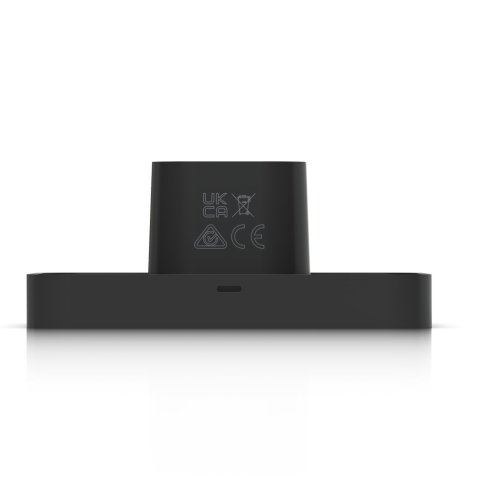

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-G3-Flex V01
Software
Management Application
Access
Software Information
