DeskMini B660 Series
Supports 12th Gen Intel Core™ Processors (LGA1700), up to 65W
Dual DDR4-3200MHz SO-DIMMs, up to 64GB
Multi Video Outputs:2 x DisplayPort, HDMI & D-Sub
1 x USB 3.2 Gen2x2 Type-C port (20 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (with USB Type-C Alt Mode)
1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
1 x Blazing M.2 (PCIe Gen5 x4) Slot
1 x Hyper M.2 (PCIe Gen4 x4) Slot
2 x 2.5" HDD/SSD with RAID 0/1
1 x M.2 Key-E for Wi-Fi

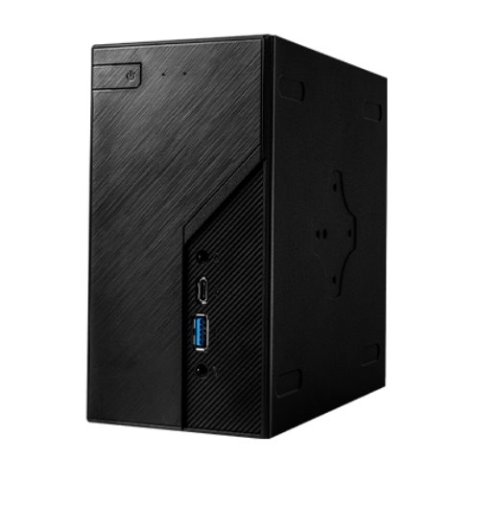

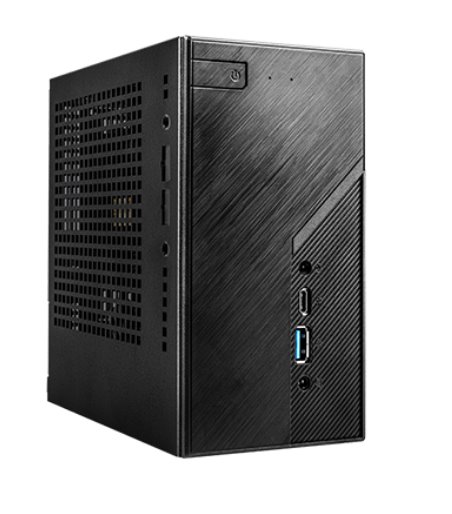

DeskMini B660
CPU- Supports 12th Gen Intel® Core™ Processors (LGA1700), Max. TDP 65W
Cooler- Supports Intel® CPU Cooler (Max. Height ? 47mm)
Memory- Supports 2 x SO-DIMM DDR4-3200MHz, Max. 64GB (non-ECC)
Chipset- Intel® B660
Graphics- HDMI (4K@60Hz)
- DisplayPort 1.4
- DisplayPort 1.4 (over USB Type-C Alt Mode)
- D-Sub

*Supports up to 4 displays simultaneously
Audio- Realtek ALC269 Audio Codec
Storage- 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

*Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports Intel® Volume Management Device (VMD)
LAN- Gigabit LAN (Intel® I219V)
WLAN- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel® CNVi (Integrated Wi-Fi/BT)
Front I/O- 1 x MIC-In
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x Head Phone with MIC Jack

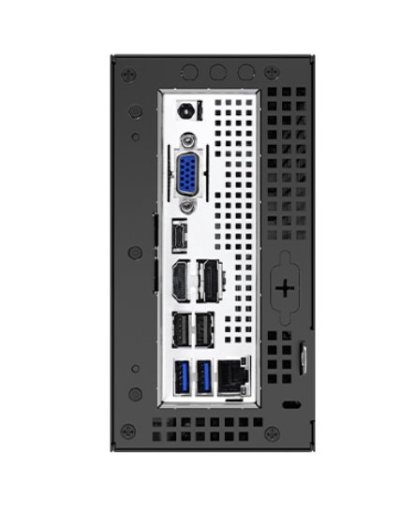

Rear I/O- 1 x DC-In Jack (Compatible with the 19V power adapter)
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
- 2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED
Connectors- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Audio Header (4-Pin)
Accessory- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
Dimension- 155 x 155 x 80 mm (1.92L)
OS- Microsoft® Windows® 10 64-bit / 11 64-bit
