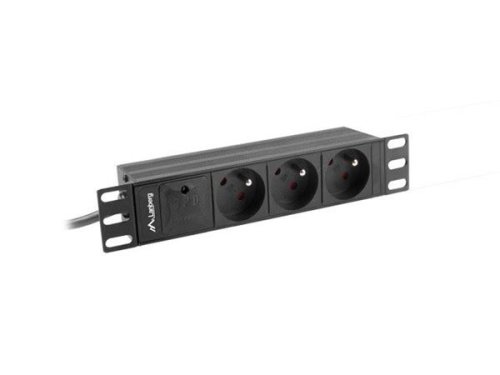

Lanberg’s PDU (Power distribution unit) surge protector is a solution dedicated to professional applications in the field of power strips. Its construction has been prepared exclusively for horizontal mounting on the front of all types of 10" server cabinets. The strip provides uninterrupted, reliable power supply to devices connected to it, giving its users an additional level of protection.

This particular PDU is equipped with 1 phase power input and a number of additional security features, such as the use of overload protection, current circuit diaphragms to protect the user and an automatic fuse, which makes maintenance or replacement of this element very easy.

On top of that, for even greater level of security Lanberg’s PDUs all have larger cable cross-section which guarantees full, uninterrupted operation of the device, even when load levels are very high. Due to this, this product can be successfully used in a professional server environment as a safe, reliable and versatile power distribution unit.

Product specification:

• Height: 1U,

• Voltage range: 220V ~ 250V,

• Frequency range: 50Hz / 60Hz,

• Maximum power of the strip: 4000W,

• Fuse: automatic. Activated if the green LED is on,

• Max. intensity of surge protection: 3000A ~ 5000A,

• PDU material: aluminum,

• Input cable plug type: uni-schuko (DIN 49441), 16A,

• Input cable pins type: solid, brass,

• Type and number of output sockets: french x3 (NF C 61-314),

• Output socket pin type: full, brass,

• Length and type of cable: 2m, 3-core, cross-section 1.5mm^2. Compliant with VDE,

• Rackmount ears (can be reversed, not detached),

• Color: Black.

  Package content:

• PDU

• User manual

• M6 screws: 4 pcs
