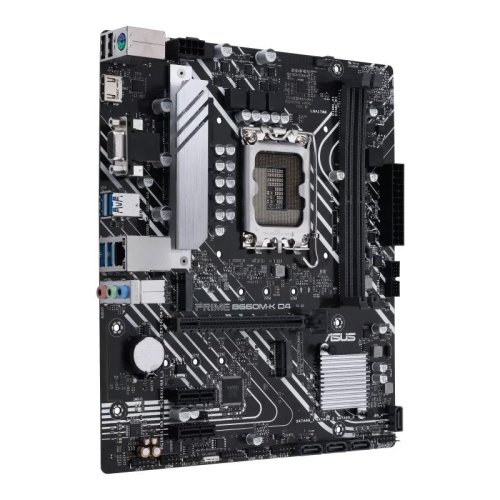

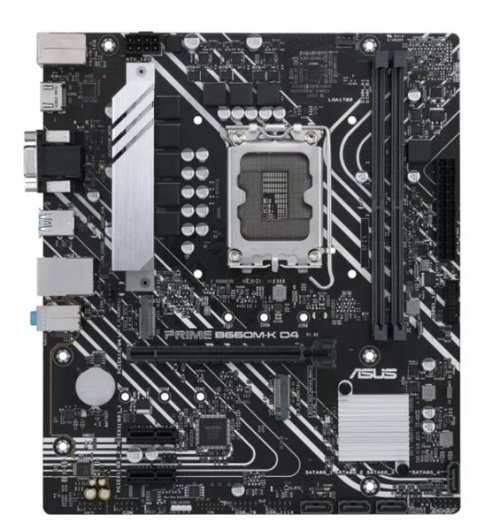

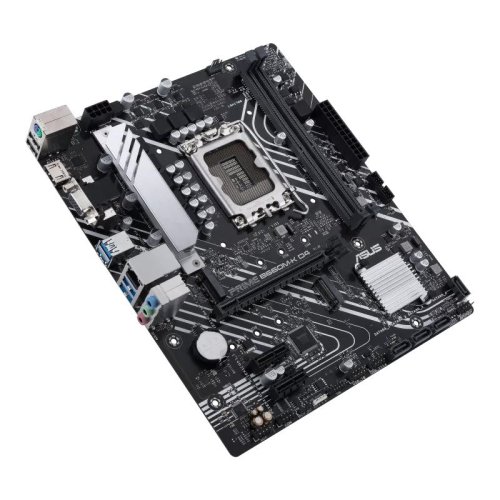

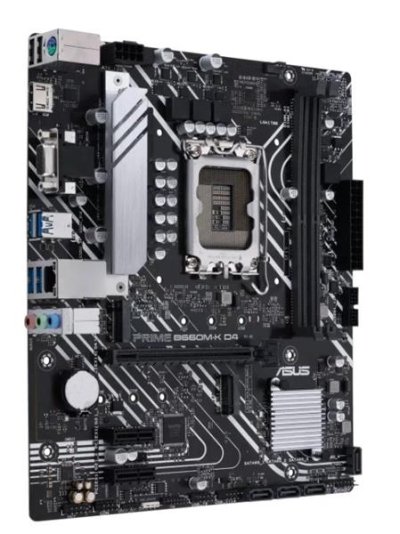

ASUS PRIME B660M-K D4 soc 1700 B660 DDR4 mATX HDMI D-Sub


Základná doska Intel® B660 (LGA 1700) mATX s PCIe® 4.0, dva sloty M.2, DDR4, HDMI®, D-Sub, Realtek 1Gb Ethernet, predné USB 3.2 Gen 1, ASUS Lighting Control Patica Intel® LGA 1700: Pripravená pre procesory …
Vaše cena 3 859,00
Vaše cena bez DPH 3 189,26

Dostupnost Skladem > 5 ks
Odesíláme v pondělí

Výprodej zboží této kategorie - slevy až 80%


Podrobný popis

Základná doska Intel® B660 (LGA 1700) mATX s PCIe® 4.0, dva sloty M.2, DDR4, HDMI®, D-Sub, Realtek 1Gb Ethernet, predné USB 3.2 Gen 1, ASUS Lighting Control
Patica Intel® LGA 1700: Pripravená pre procesory Intel® 12. a 13. generácie
Vylepšené riešenie napájania: 8-kolíkový konektor ProCool, zliatinové tlmivky a odolné kondenzátory pre stabilnú dodávku energie
Komplexné chladenie: chladič VRM, chladič PCH, hybridné hlavičky ventilátorov a Fan Xpert
Ultrarýchle pripojenie: PCIe® 4.0, dva sloty M.2 a predný USB 3.2 Gen 1

Technická špecifikácia


CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Intel® Socket LGA1700 for 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  • Refer to www.asus.com for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Memory
    2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
  • Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

    Graphics
    1 x D-Sub port
    1 x HDMI® port**
  • Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Support 4K@60Hz as specified in HDMI® 2.1.

    Expansion Slots
    Intel® 12th Gen Processors
    1 x PCIe 4.0/3.0 x16 slot

    Intel® B660 Chipset
    2 x PCIe 3.0 x1 slots

    Storage
    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280
  • Intel® 12th Gen processors support PCIe 4.0 x4 mode.

    Intel®B660 Chipset**
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
    4 x SATA 6Gb/s ports
  • Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

    Ethernet
    1 x Realtek 1Gb Ethernet

    USB
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports

    Audio
    Realtek 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback"

    Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

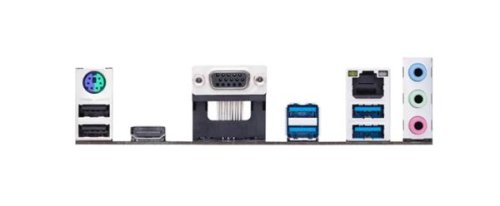

    Back Panel I/O Ports
    4 x USB 3.2 Gen 1 ports (4 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x D-Sub port
    1 x HDMI® port
    1 x Realtek 1Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port

    Internal I/O Connectors
    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin Chassis Fan header
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    1 x RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x S/PDIF Out header
    1 x Speaker header
    1 x SPI TPM header (14-1pin)
    1 x 10-1 pin System Panel header

    Special Features
    ASUS 5X PROTECTION III
  • DIGI+ VRM
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core
  • Stainless-Steel Back I/O
    ASUS Q-Design
  • Q-DIMM
  • Q-Slot
    ASUS EZ DIY
  • ProCool
    ASUS Thermal Solution
  • VRM heatsink design
    ASUS Lighting Control
    -RGB header

    Software Features
    ASUS Exclusive Software
    Armoury Crate
    AI Suite 3
  • Performance And Power Saving Utility
    TurboV EVO
    EPU
    DIGI+ VRM
    Fan Xpert
    ASUS CPU-Z
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

    BIOS
    128 Mb Flash ROM, UEFI AMI BIOS

    Manageability
    WOL by PME, PXE

    Accessories
    Cables
    2x SATA 6Gb/s cables

    Miscellaneous
    1 x I/O Shield
    2 x M.2 anchors

    Installation Media
    1 x Support DVD

    Documentation
    1 x User manual

    Operating System
    Windows® 11 64-bit, Windows® 10 64-bit
    Windows® 11 64-bit, Windows® 10 64-bit

    Form Factor
    microATX
    24.4cm x 21.1cm
