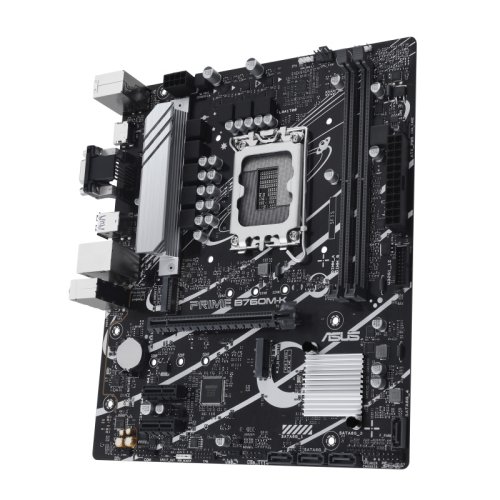

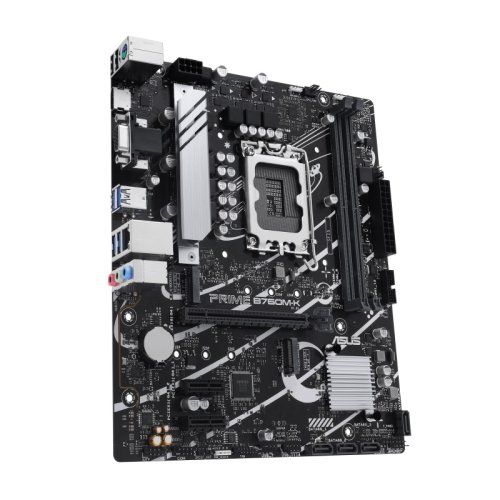

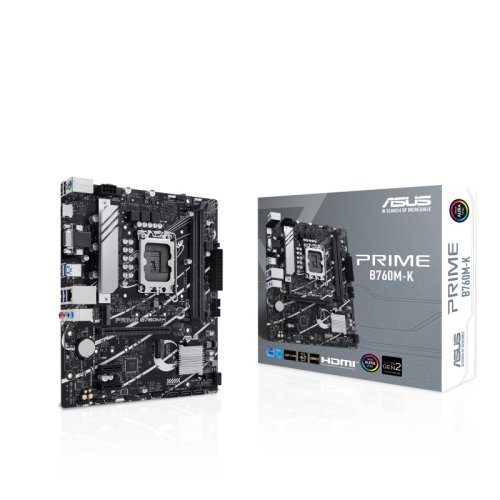

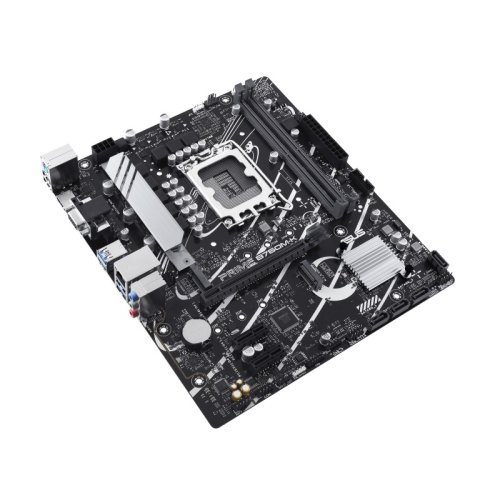

Základná doska ASUS Prime B760M-K s procesorom Intel® B760 LGA 1700 vo formáte mATX, PCIe 4.0, dva PCIe 4.0 M.2 sloty, DDR5, Realtek 2,5 Gbit Ethernet, VGA, HDMI™, SATA 6 Gbit/s, predný USB 3.2 Gen 1, Aura Sync
Pätica Intel® LGA 1700: Pripravené pre procesory Intel® 12. a 13. generácie
Ultra rýchla konektivita: PCIe 4.0, dva PCIe 4.0 M.2 sloty, Realtek 2,5 Gbit Ethernet a podpora predného USB 3.2 Gen 1
Komplexné chladenie: VRM chladič, PCH chladič, headery hybridných ventilátorov a Fan Xpert 2+
Osvetlenie Aura Sync RGB: Integrované adresovateľné headery 2. generácie a header Aura RGB pre RGB LED pásky, ľahko synchronizovateľné s hardvérom podporujúcim Aura Sync

Špecifikácia:

Model
PRIME B760M-K
News & Updates
2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.

CPU
Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset
  Intel® B760 Chipset

  Pamäť
  2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Grafika
  1 x VGA port
  1 x HDMITM port**

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports 4K@60Hz as specified in HDMITM 2.1.

  Rozširujúce sloty
  Intel® CoreTM Processors (14th & 13th & 12th Gen)
  1 x PCIe 4.0 x16 slot
  Intel® B760 Chipset
  2 x PCIe 4.0 x1 slots


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

  Úložisko
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® CoreTM Processors (14th & 13th & 12th Gen)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports


• Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

  Ethernet
  1 x Realtek 2.5Gb Ethernet

  USB
  Rear USB (Total 6 ports)
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback
  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

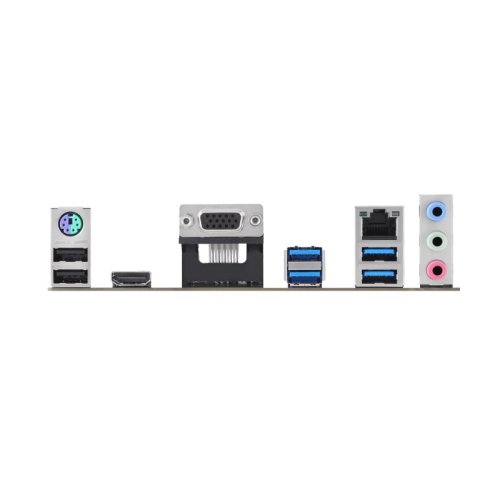

  Porty na zadnom paneli
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x VGA port
  1 x HDMITM port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port

  Vnútorné konektory
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

  Špeciálne funkcie
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage Protection

• SafeSlot Core

• Stainless-Steel Back I/O
  ASUS Q-Design

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS EZ DIY

• ProCool
  ASUS Thermal Solution

• VRM heatsink design
  Aura Sync

• Aura RGB header

• Addressable Gen 2 headers

  Softvérové funkcie
  ASUS Exclusive Software
  Armoury Crate

• Aura Sync

• Fan Xpert 2+

• Power Saving

• Two-Way AI Noise Cancellation
  AI Suite 3

• DIGI+ VRM

• PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Správa
  WOL by PME, PXE

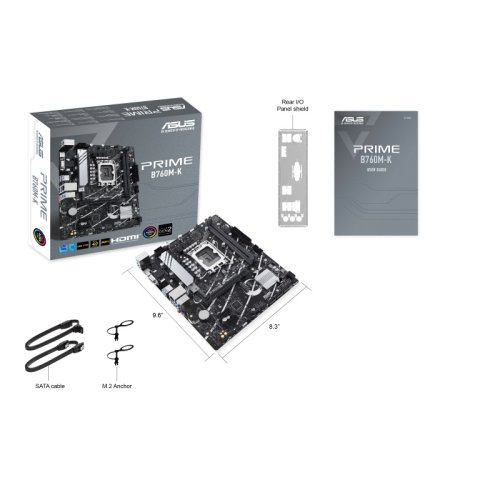

  Príslušenstvo
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  2 x M.2 anchors
  Documentation
  1 x User guide

  Operačný systém
  Windows® 11, Windows® 10 64-bit

  Formát ATX
  mATX Form Factor
  9.6 inch x 8.3 inch (24.4cm x 21.1cm)
