Základné dosky radu ASUS Prime sú odborne navrhnuté tak, aby naplno využili potenciál procesorov AMD Ryzen™ série 9000.
Poskytuje používateľom a konštruktérom PC rad optimalizácií výkonu prostredníctvom intuitívnych funkcií softvéru a firmvéru.
Pripravené na počítač s pokročilou AI a ponúkajú výkon a konektivitu potrebnú pre náročné aplikácie AI.

ASUS Corporate Stable Model (CSM) je komerčný program navrhnutý na zaistenie stabilných a spoľahlivých základných dosiek.
Ponúka podporu až 36 mesiacov počas životného cyklu produktu a 6 mesiacov pred ukončením modelu, aby sa vaša organizácia mohla primerane pripraviť na prechod na nový produkt.
Každá zakúpená základná doska ASUS CSM sa dodáva s ASUS Control Center Express – softvérom pre správu IT serverovej úrovne.

S nákupom základnej dosky ASUS CSM získavate licenciu ASUS Control Center - centralizovaný softvér pre správu IT
Pomáha optimalizovať správu IT koncových bodov, ich automatickú údržbu a bezpečné ovládanie.
Pomáha v monitorovaní a ovládaní všetkých zariadení v rámci svojich firemných sietí a zjednodušoval vzdialenú kontrolu inventára na viacerých miestach zároveň.
Umožňuje naplánovať automatické aktualizácie najnovšieho systému BIOS, softvéru a pomôcok pre všetky zariadenia mimo prevádzkovú špičku, čo zvyšuje stabilitu systému a prevádzkovú flexibilitu IT.
Bezpečne spravujte konfiguráciu koncových bodov, prístup k úložiskám a všetky svoje softvérové aplikácie tým, že umožníte vytvárať pravidlá zoskupovania na jednotlivých zariadeniach.

Špecifikácia:

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

  Chipset
  AMD B840 Chipset

  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Supports up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics
  2 x DisplayPort**
  1 x HDMI™ port***

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 4.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  AMD B840 Chipset
  2 x PCIe 3.0 x16 slots (support x1 mode)

• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  ** Specifications vary by CPU types.


• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

  Storage
  Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
  AMD B840 Chipset
  M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
  4 x SATA 6Gb/s ports


• Specifications vary by CPU types.
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 Series Processors: RAID 0/1/5/10
  Ryzen™ 8000 Series Processors: RAID 0/1
  Ryzen™ 7000 Series Processors: RAID 0/1/10

  Ethernet
  1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard

  USB
  Rear USB (Total 7 ports)
  2 x USB 10Gbps ports (2 x Type-A)
  1 x USB 5Gbps port (1 x USB Type-C®)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 5Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C® power delivery output: max. 5V/3A

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback

  Audio Features

• Audio Shielding

• Premium audio capacitors

• Dedicated audio PCB layers


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

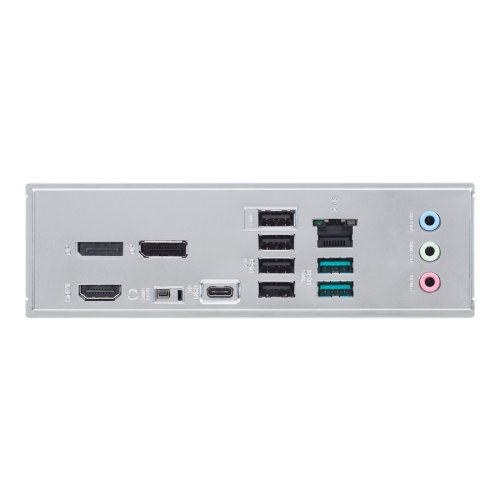

  Back Panel I/O Ports
  2 x USB 10Gbps ports (2 x Type-A)
  1 x USB 5Gbps port (1 x USB Type-C®)
  4 x USB 2.0 ports (4 x Type-A)
  2 x DisplayPort
  1 x HDMI™ port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button

  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  2 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  Storage Related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin Front Panel System header

  Special Features
  ASUS 5X PROTECTION III


• DIGI+ VRM

• LANGuard

• Overvoltage protection

• SafeSlot Core+

• Stainless-steel back I/O
  ASUS Q-Design

• Q-Dashboard

• Q-DIMM

• Q-LED Core

• Q-Slot
  ASUS Thermal Solution

• M.2 heatsink

• VRM heatsink design
  ASUS EZ DIY

• BIOS FlashBack™ button

• BIOS FlashBack™ LED

• Pre-mounted I/O shield
  Aura Sync

• Addressable Gen 2 headers

  Software Features
  ASUS Exclusive Software
  Armoury Crate

• Aura Creator

• Aura Sync

• Fan Xpert 2+

• Power Saving
  ASUS DriverHub
  TurboV Core
  ASUS CPU-Z
  Adobe Creative Cloud (Free Trial)
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode

• ASUS MyHotkey
  Remote Management Features
  IT Management software supported

• ASUS Control Center Express (ACCE)

  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x M.2 rubber package
  2 x Screw packages for M.2 SSD
  Documentation
  1 x ACC Express Activation Key Card
  1 x Quick start guide
  Operating System
  Windows 11, Windows 10 64-bit

  Form Factor
  micro-ATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
