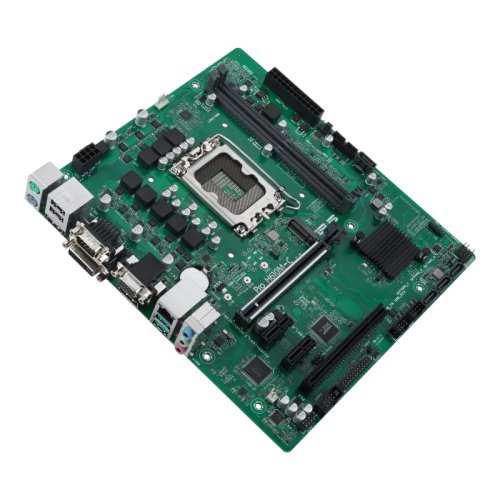

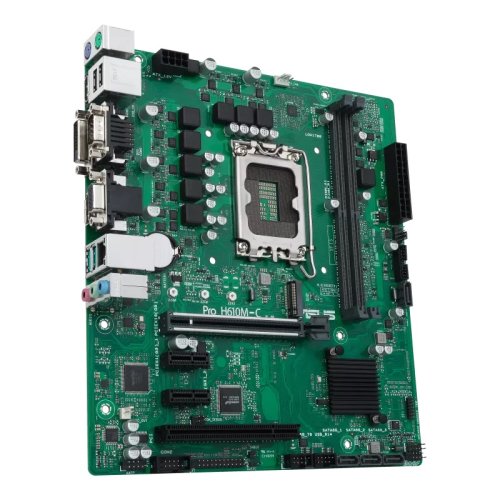

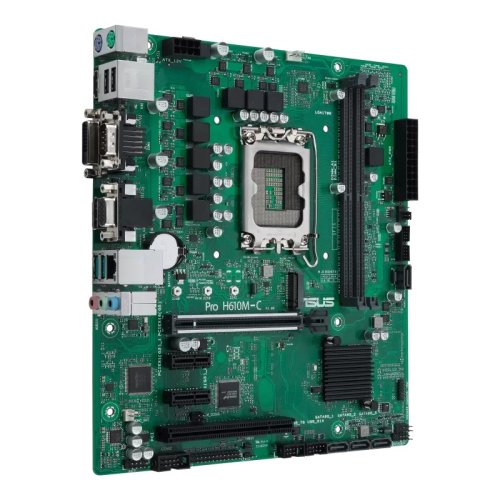

Základná doska Micro-ATX H610 pre firmy so zvýšeným zabezpečením, spoľahlivosťou, správou a údržbou
Pätica Intel® LGA 1700: Pripravená pre procesory Intel® 14., 13. a 12. generácie
Program ASUS CSM: Stabilná dodávka základných dosiek, upozornenia na koniec životnosti a IT softvér pre firemné základné dosky
ASUS Control Center Express: Integrovaný softvér na monitorovanie a správu IT, ktorý zjednodušuje správu systému na podnikovej úrovni
Vylepšené zabezpečenie systému: Samoobnoviteľný BIOS a TPM na ochranu počítačov
Konzistentný a spoľahlivý výkon: Vysokokvalitné komponenty a dôkladné testovanie pomáhajú zabezpečiť odolnosť v náročných prostrediach
Efektívna správa a prispôsobenie: Denník udalostí a komerčná sada BIOS pre jednoduchú údržbu
Lepšia údržba: Diagnostický displej Q-LED a ladenie COM portu pre uľahčenie procesov zostavovania a podpory
Ultrarýchle pripojenie: PCIe 5.0, DDDR 5, USB 3.2 Gen 2

Model ASUS Corporate Stable (CSM) je komerčný program navrhnutý tak, aby poskytoval stabilné a spoľahlivé základné dosky.
Ponúka až 36-mesačnú podporu životného cyklu produktu a 6-mesačné oznámenie o ukončení životnosti, aby vaša organizácia mala dostatočný čas na prípravu na prechod produktov.
Každý nákup základnej dosky ASUS CSM je dodávaný s ASUS Control Center Express – softvérom na správu IT na serverovej úrovni.


CPU
Intel® Socket LGA1700 from 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset
  Intel® H610 Chipset

  Memory
  2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

  Graphics
  1 x DisplayPort*
  1 x D-Sub port
  1 x HDMI® port***
  1 x DVI-D port

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  **** Supports up to 3 displays simultaneously.

  Expansion Slots
  1 x PCIe 5.0 x16 slot
  Intel® H610 Chipset
  2 x PCIe 3.0 x1 slots
  1 x PCI

  Storage
  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel® H610 Chipset
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  4 x SATA 6Gb/s ports

  Ethernet
  1 x Intel® 1Gb Ethernet
  ASUS LANGuard

  USB
  Rear USB (Total 4 ports)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 6 ports)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports

  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*


• Supports: Jack-detection, Front Panel Jack-retasking

• Supports up to 24-Bit/192 kHz playback


• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI® port
  1 x D-Sub port
  1 x DVI-D port
  1 x Intel® 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 keyboard (purple) port
  1 x PS/2 mouse (green) port
  1 x COM port

  Internal I/O Connectors
  Fan and cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  1 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  1 x Clear CMOS header
  1 x Chassis Intrude header
  1 x COM Port headers
  1 x Front Panel Audio header (AAFP)
  1 x COM debug header
  1 x LPT header
  1 x Mono-out header(with Amp IC)
  1 x SMBUS header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

  Special Features
  ASUS EZ DIY


• Box Headers
  Bespoke Motherboard Design & Business Focused Features

• Q-LED Core

• ASUS Self Recovering BIOS

• ASUS Event Log

• ASUS Commercial BIOS kit

• Anti-Moisture

• 24/7 Reliability

• Overcurrent Protection

  Software Features
  ASUS Exclusive Software
  IT Management software supported

• ASUS Control Center Express(ACCE)

  BIOS
  128Mb Flash ROM

  Manageability
  WOL by PME, PXE

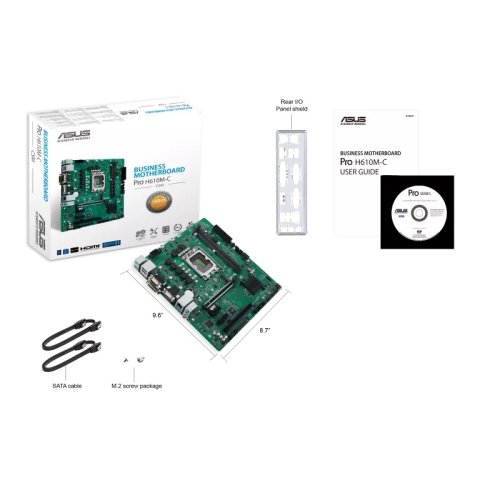

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  1 x M.2 SSD screw package
  Installation Media
  1 x Support DVD
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide

  Operating System
  Windows® 11 64-bit, Windows® 10 64-bit

  Form Factor
  mATX Form Factor
  9.6 inch x 8.7 inch (24.4 cm x 22 cm)
