<B>Chipset: </B> Intel® H470

<B>Rozměrový formát: </B> Micro ATX Form Factor (226 mm x 185 mm) <B>Podpora pro procesory: </B> Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package <B>Patice procesoru: </B> LGA 1200

<B>Pozice na paměti: </B> 2x DDR4 DIMM <B>Podpora pro paměti: </B> *Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz memory modules *Intel® Core™ i5/i3/Pentium®/Celeron® processors: DDR4 2666/2400/2133 MHz memory modules <B>Max.velikost operační paměti: </B> 64 GB <B>Podpora pro paměti typu: </B> DDR4 *Dual channel memory architecture *ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Extreme Memory Profile (XMP) memory modules

<B>Grafické výstupy: </B> *Integrated Graphics Processor (na základě procesoru)

<B>Zvuková karta: </B> *Realtek® Audio CODEC

<B>Síťová karta: </B> *Intel® GbE LAN chip (1 Gbit/100 Mbit)

<B>Rozšiřující sloty: </B> *1x PCI Express x16 slot, running at x16 *2x PCI Express x1 slots

<B>RAID řadič: </B> 0, 1, 5, a 10

<B>SATA: </B> *4x SATA 6Gb/s

<B>M.2: </B> *1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

<B>USB: </B> *<B>zadní USB porty ( celkem 6 )</B> *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *<B>přední USB porty ( celkem 4 )</B> *2x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports

<B>Interní porty: </B> *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *1x system fan header *1x RGB LED strip header *4x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x USB 3.2 Gen 1 header *1x USB 2.0/1.1 header *1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1x serial port header *1x Clear CMOS jumper

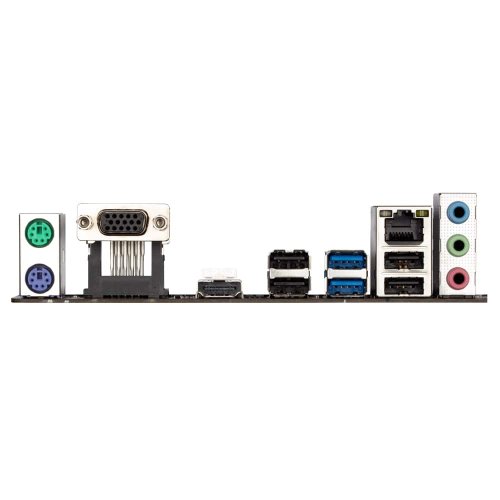

<B>Externí porty: </B> *1x PS/2 keyboard/mouse port *1x D-Sub port *1x HDMI port *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *1x RJ-45 port *3x audio jacks

<B>BIOS: </B> 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

<B>Stránka výrobce: </B> https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10
