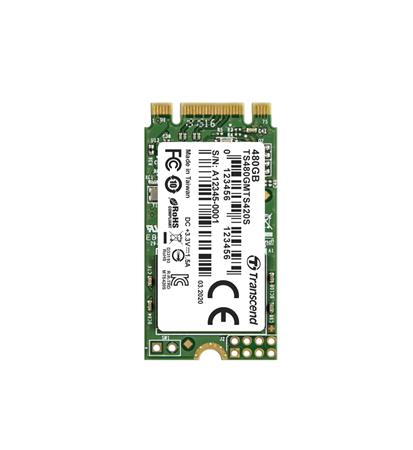

TRANSCEND MTS420S 480GB SSD disk M.2 2242, SATA III (3D TLC), 530MB/s R, 480MB/s W

SATA III 6Gb/s MTS420S M.2 SSD

Utilizing the SATA III 6Gb/s interface and the latest 3D NAND technology, Transcend's ultracompact MTS420S M.2 SSD is well-suited to address the high-performance needs and strict size limitations of small form factor devices. By using only high-quality flash chips and enhanced firmware algorithms, Transcend's MTS420S M.2 SSD delivers peerless reliability.

Key Features:
Space-saving M.2 SATA form factor (42mm) for ultra-compact computing devices
3D NAND flash chips
SATA III 6Gb/s interface and SLC caching technology for exceptional transfer speeds
Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity
Supports Device Sleep Mode (DevSleep) to prolong notebook battery life by intelligently shutting down SATA interface when not in use
DDR3 DRAM cache
Supports S.M.A.R.T., TRIM and NCQ commands

Specifications:
Dimensions: 42.0mm × 22.0mm × 3.8mm (1.65" x 0.87" x 0.15")
Weight (max.): 8g (0.28 oz)
Storage Media: 3D NAND TLC flash memory
Sequential Read/Write (CrystalDiskMark): 530MB/s R, 480MB/s W
4K Random Read/Write (IOmeter): up to 50,000/75,000 IOPS
Terabytes Written (TBW): 160 TBW
Mean Time Between Failures (MTBF): 2,000,000 hour(s)
Drive Writes Per Day (DWPD): 0.3 (3 yrs)
Operating Voltage: DC 3.3V±5%
Operating Temperature: 0°C(32°F) ~ 70°C(158°F)
Certificates: CE, FCC, BSMI
Warranty Three-year Limited Warranty (The 3 years warranty does not apply when SSD Scope's wear-out indicator shows 0% within 3 years.)

Speed may vary due to host hardware, software, usage, and storage capacity.

System Requirements:
Desktop or notebook computer with M.2 interface (a SATA 6Gb/s port is needed for best performance), and one of the following operating systems:
Windows 7
Windows 8
Windows 8.1
Windows 10
Linux Kernel 2.6.31 or later
