Herná základná doska AMD A520 (Ryzen AM4) micro ATX s podporou M.2, 802.11ac Wi-Fi, DisplayPort, HDMI, D-Sub, porty USB 3.2 Gen 1, SATA 6 Gb/s a adresovateľné záhlavia AURA Gen 2
Patice AMD AM4: Pripravené pre stolné procesory Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series
Komplexné chladenie: Veľký chladič VRM, chladič PCH, Fan Xpert 2+
Vyrobené pre online hranie: 802.11ac Wi-Fi, TUF LANGuard a technológia TurboLAN
Aura Sync RGB: Zabudované hlavičky RGB a adresovateľné hlavičky Gen 2 pre RGB LED pásiky, ktoré sa ľahko synchronizujú s hardvérom s podporou Aura Sync


CPU
AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Processors *

• Refer to www.asus.com for CPU support list

  Chipset
  AMD A520

  Memory
  4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.

• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• The maximum memory frequency supported varies by processor

  Graphic
  1 x DisplayPort 1.2
  1 x HDMITM 2.1(4K@60Hz)
  1 x D-Sub
  *Graphics specifications may vary between CPU types.

  Expansion Slots
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  1 x PCIe 3.0 x16 slot (supports x16 mode)
  AMD A520 Chipset
  2 x PCIe 3.0 x1 slots

  Storage
  Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  AMD A520 Chipset
  4 x SATA 6Gb/s ports
  Support RAID 0, 1, 10

  LAN
  1 x Realtek 1Gb Ethernet
  TUF LANGuard

  Wireless & Bluetooth
  Realtek Wi-Fi 5 8821CE
  1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
  Supports dual frequency band 2.4/5GHz
  Supports channel bandwidth: HT20/HT40/HT80
  Bluetooth v5.0

  Audio
  Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC


• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

  Audio Feature :

• Audio Shielding

• Dedicated audio PCB layers

• Premium Japanese audio capacitors


• Choose the chassis with HD audio module in front panel to support 8-channel audio output.

  USB Ports
  Rear USB:Total 6 ports
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)

  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 3 USB 2.0 ports

  Software Features
  ASUS Exclusive Software
  Armoury Crate


• Aura Creator

• Aura Sync
  AI Suite 3

• Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert 2+

• EZ update

• PC Cleaner

• System Information
  TUF GAMING CPU-Z
  AI Charger
  ASUS Turbo LAN
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3

• ASUS EZ Flash 3

• ASUS UEFI BIOS EZ Mode
  ASUS Special Features
  ASUS TUF PROTECTION

• ASUS DIGI+ VRM

• ASUS ESD Guards

• TUF LANGuard

• ASUS Overvoltage Protection

• ASUS SafeSlot Core+

• ASUS Stainless-Steel Back I/O
  ASUS Q-Design

• ASUS Q-DIMM

• ASUS Q-Slot
  ASUS Thermal Solution

• Aluminum heatsink design

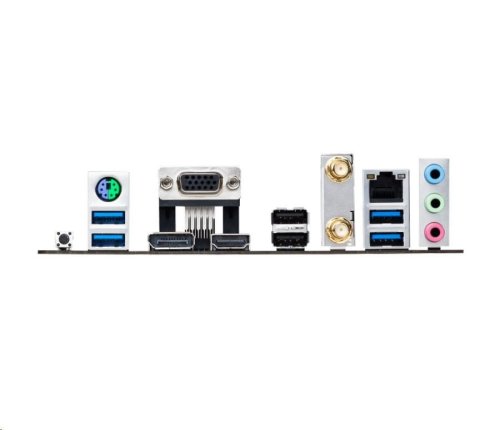

  Back I/O Ports
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI port
  1 x D-Sub
  1 x ASUS Wi-Fi Module
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x BIOS FlashBack™ button
  1 x PS/2 Keyboard/Mouse combo port

  Internal I/O Ports
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x Aura RGB Strip Header
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 with E key for Wi-Fi module
  1 x SPI TPM header
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header

  Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x ASUS Wi-Fi moving antenna
  1 x TUF Gaming Sticker
  1 x TUF Certification card(s)
  1 x M.2 SSD screw package(s)
  1 x M.2 Key E screw package(s)

  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS

  Manageability
  WOL by PXE

  Operating System
  Windows® 10 64-bit

  Form Factor
  mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
