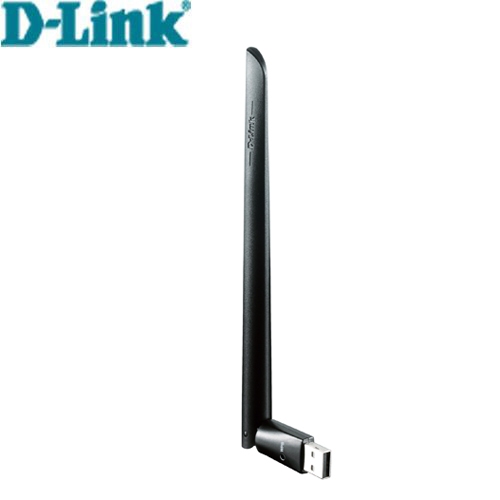

D-Link DWA-172 WiFi Wireless AC600 High

OVERVIEW FEATURES Dual-Band 802.11ac Wireless Technology • The latest Wireless AC technology with a high power antenna to help boost signal strength and deliver cutting-edge performance • Dual-band technology offers extra reliability by reducing wireless interference

Total Wireless Security • Connect to wireless networks securely using the latest encryption methods • Supports WPA2 encryption for high-level wireless security • Use Wi-Fi Protected Setup to establish a secure connection with the press of a button

Compact and Portable • Take the power of Wireless AC with you wherever you go • Instantly adds Wireless AC connectivity to any computer with a USB port2 • Slim design, doesn’t get in your way

SPECIFICATIONS GENERAL SPECIFICATIONS Interfaces • USB 2.0 connector • Status LED • WPS button

Security • Wi-Fi Protected Access (WPA & WPA2) • Wi-Fi Protected Setup - PIN & PBC

Standards • IEEE 802.11ac • IEEE 802.11n • IEEE 802.11g • IEEE 802.11b • IEEE 802.11a

Antenna Type • High power 3dBi external antenna

REQUIREMENTS Operating System • Windows 8/7/Vista/XP SP3

Compatible Browsers • Internet Explorer 7 or later • Mozilla Firefox 3.0 or later

Interface • Available USB port2

PHYSICAL Dimensions • 193 x 15.7 x 15 mm

Weight • 23.2 grams

Power • Operating Voltage: 5.0 V DC ±10% • Power Consumption: 300 mA

Temperature • Operating: 0 to 40 °C • Storage: -20 to 75 °C

Humidity • 10% to 90% (non-condensing) • 5% to 95% (non-condensing)

Certifications • FCC Class B • IC • CE • C-Tick • Wi-Fi Certified • Wi-Fi Protected Setup

1. Maximum wireless signal rate derived from draft IEEE 802.11ac specification and IEEE Standard 802.11n specification. D-Link makes no warranties as to forward compatibility with future standards or compatibility with draft 802.11ac devices from other manufacturers. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Up to 867 Mbps wireless speeds achieved when connecting to other 802.11ac devices. Data throughput may also be limited by the product’s interface, less than 480 Mbps for a USB 2.0 interface. The inclusion of a specific product or manufacturer does not imply its endorsement of D-Link or the D-Link product. Computer must adhere to Microsoft’s recommended System Requirements. 2 Using a USB 1.1 port will affect device performance. USB 2.0 port recommended.
